Metal Powder Production Plant

The lot includes:

METAL POWDER PRODUCTION PLANT

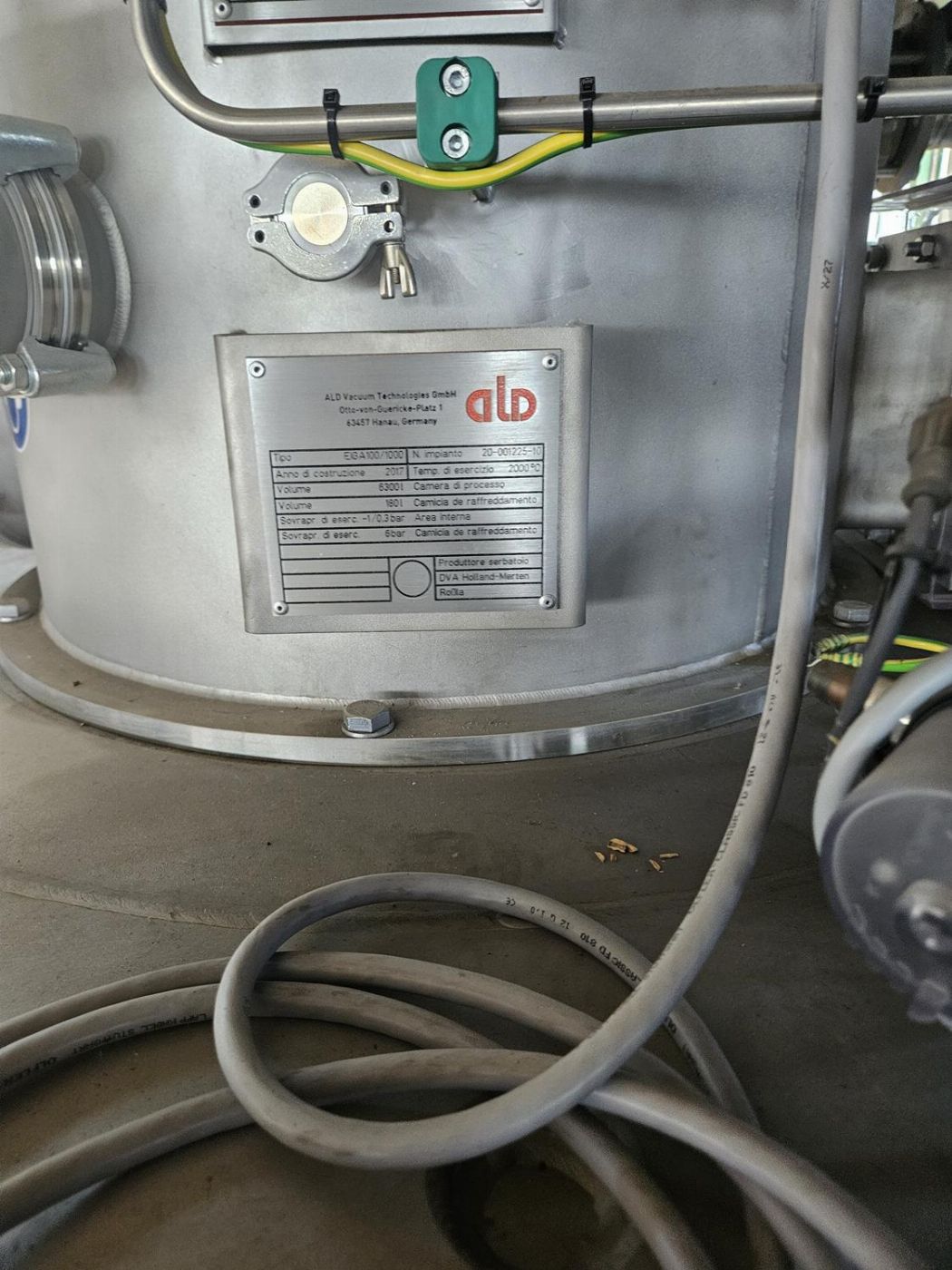

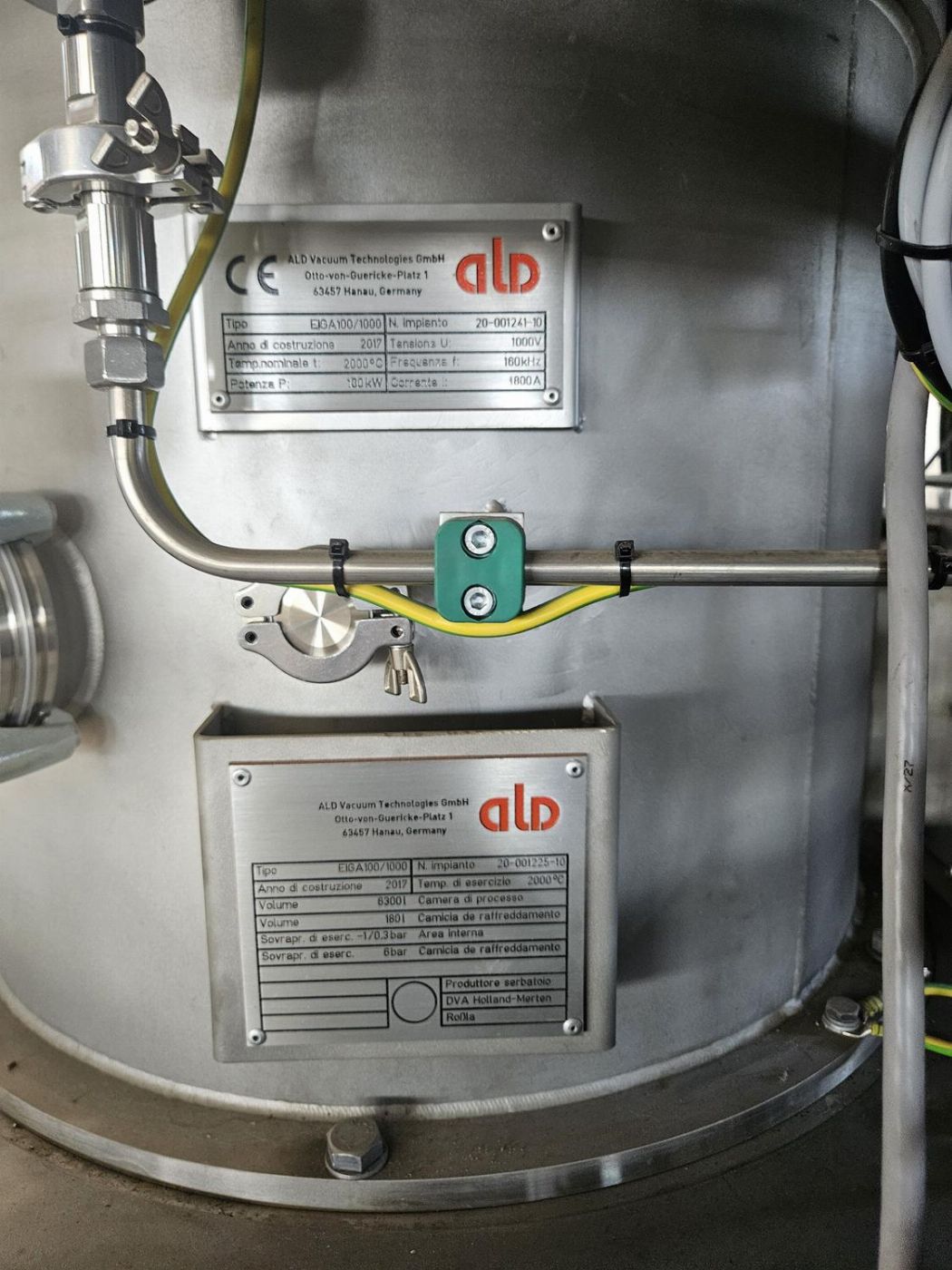

ALD Vacuum Technologies GmbH - Model EIGA 100/1000 (Year 2017)
Consisting of:

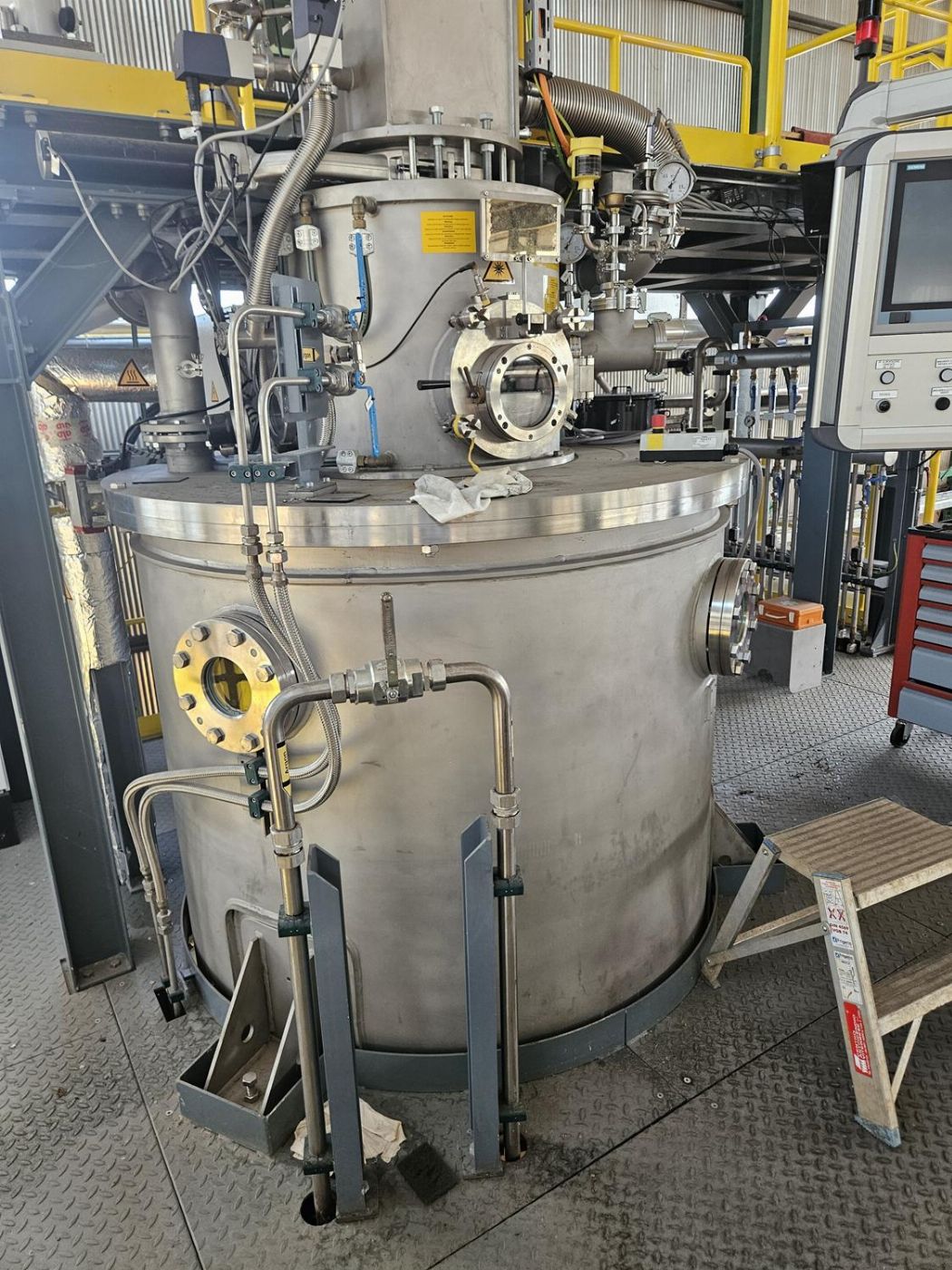

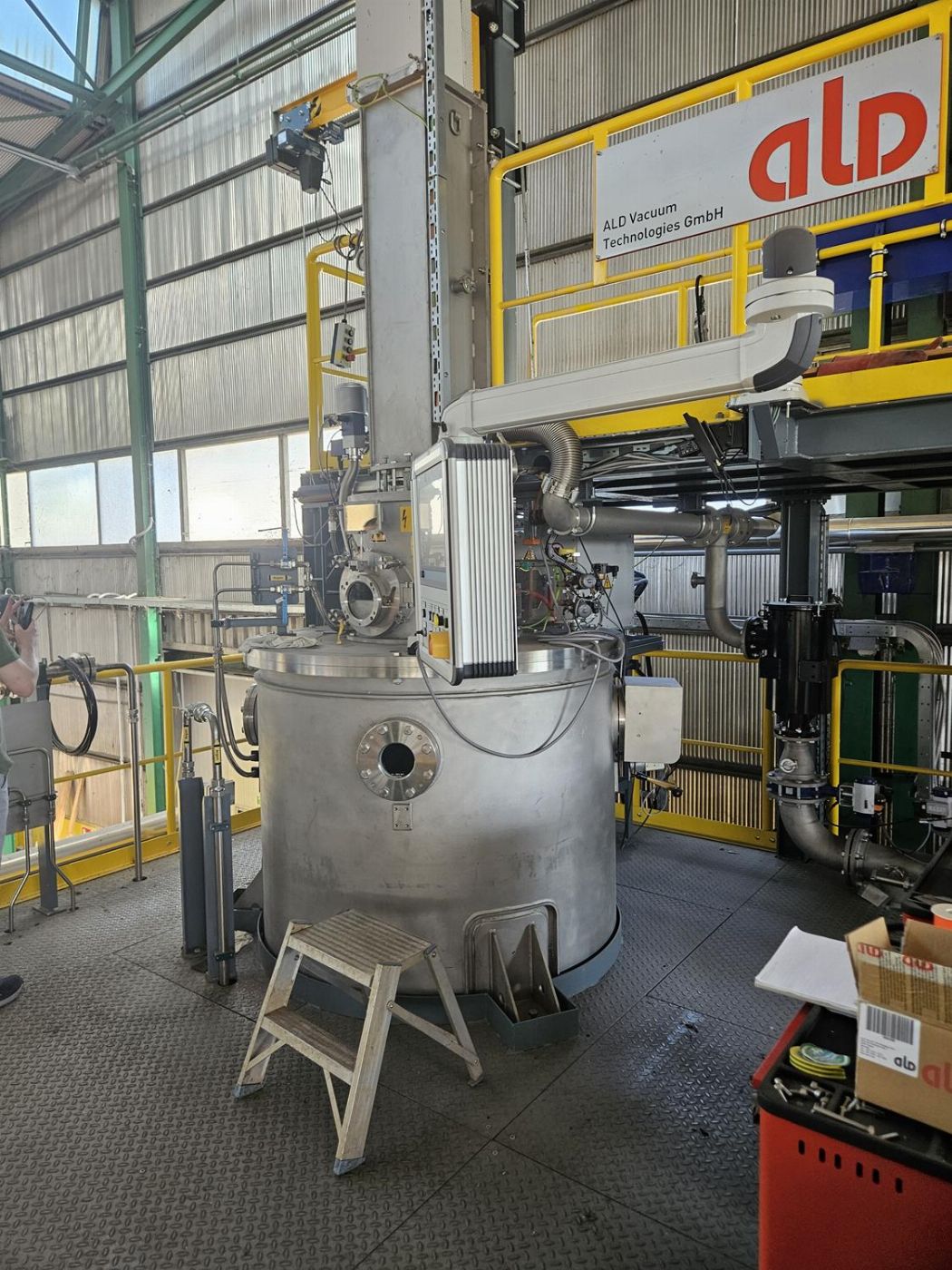

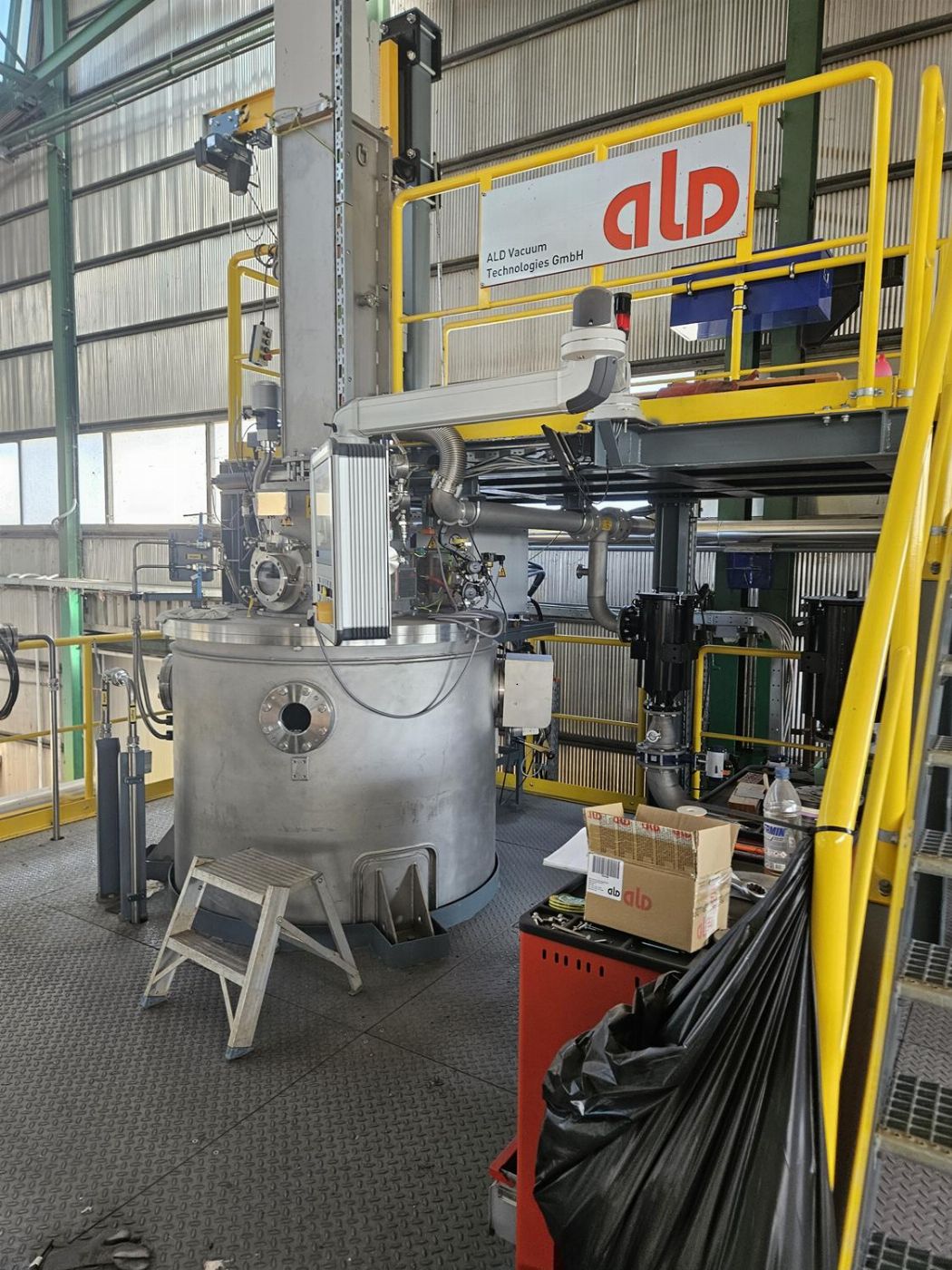

1 ALD high-temperature "ceramic-free" VIM induction melting chamber (up to 2,000 °C)

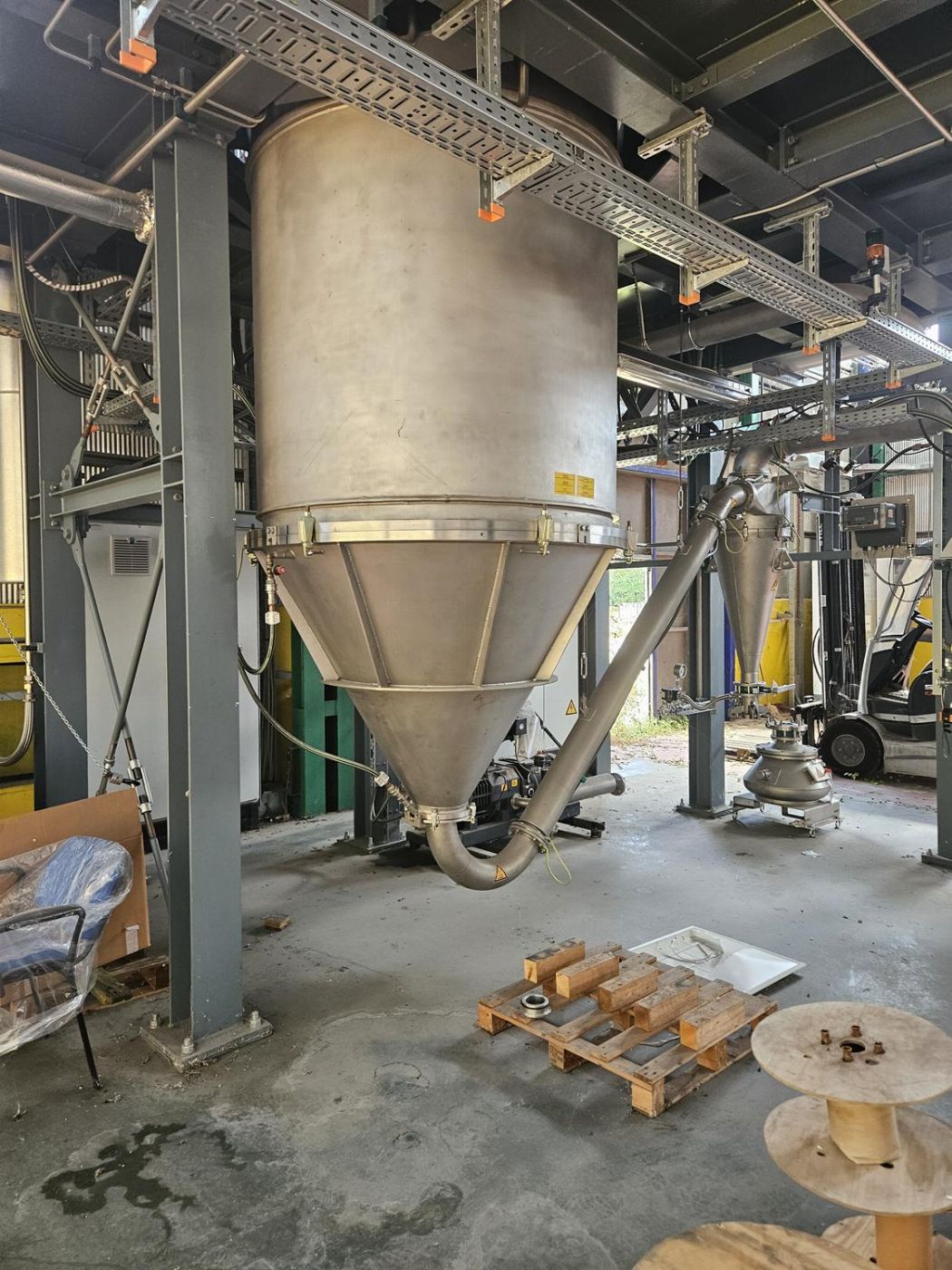

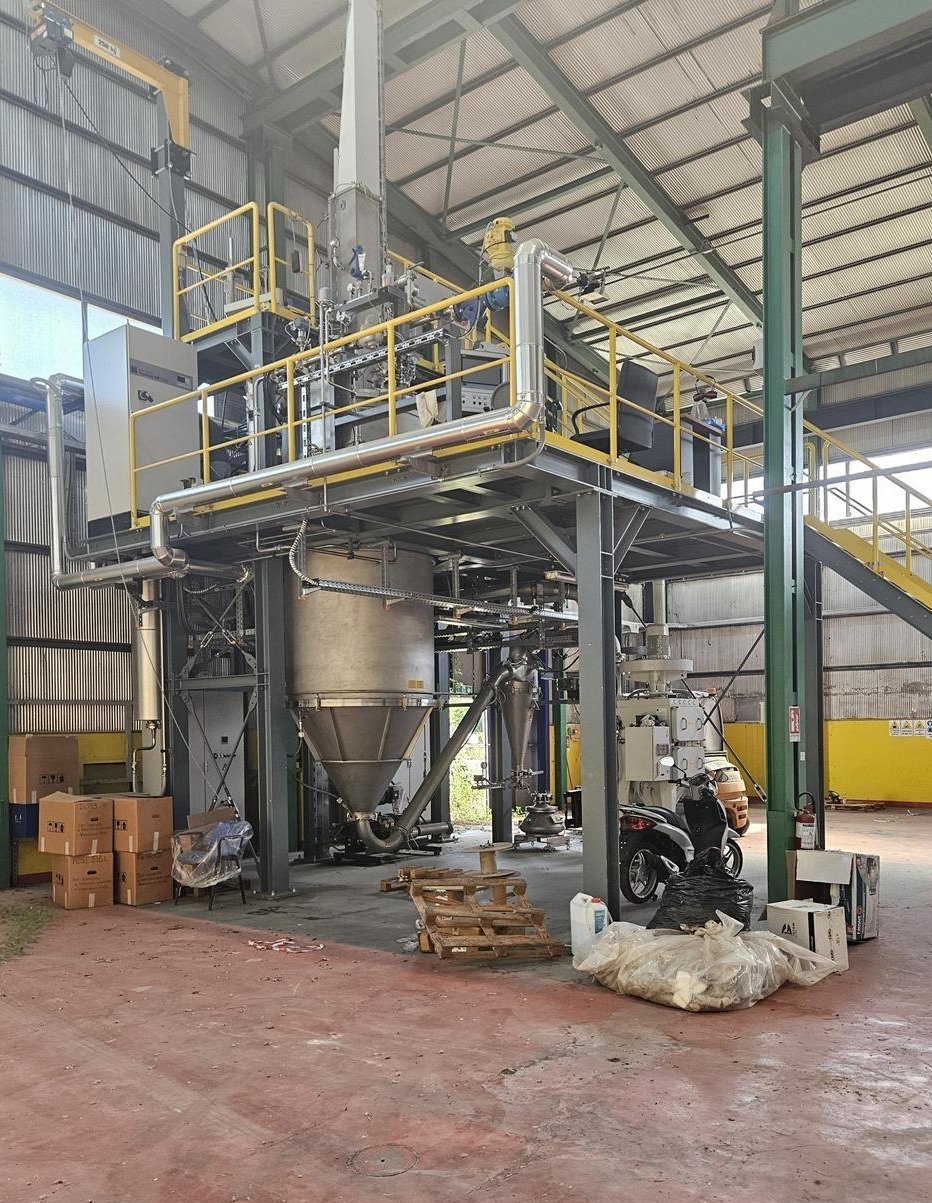

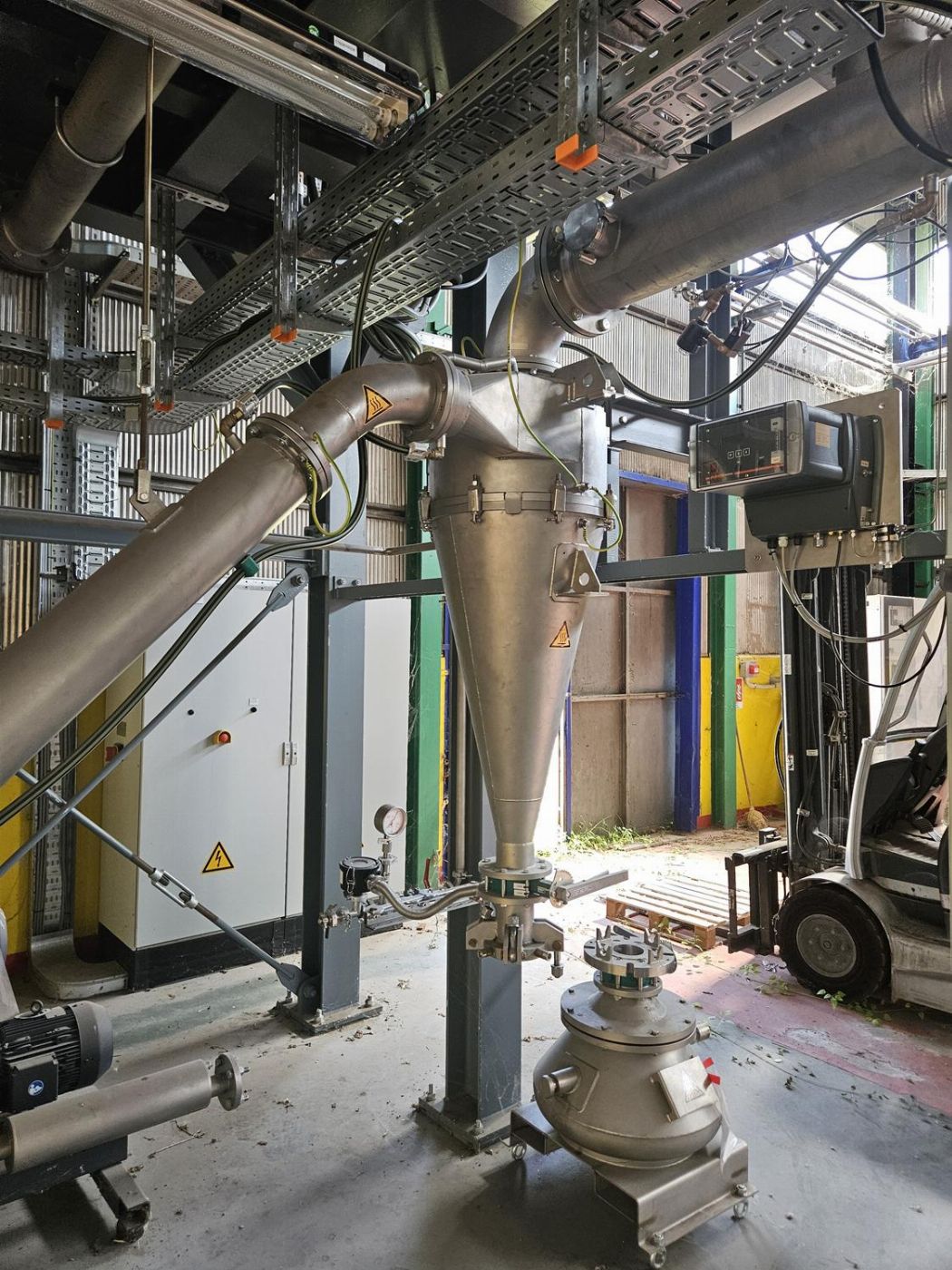

1 vertical stainless steel atomization tower with separator cyclone and discharge hopper

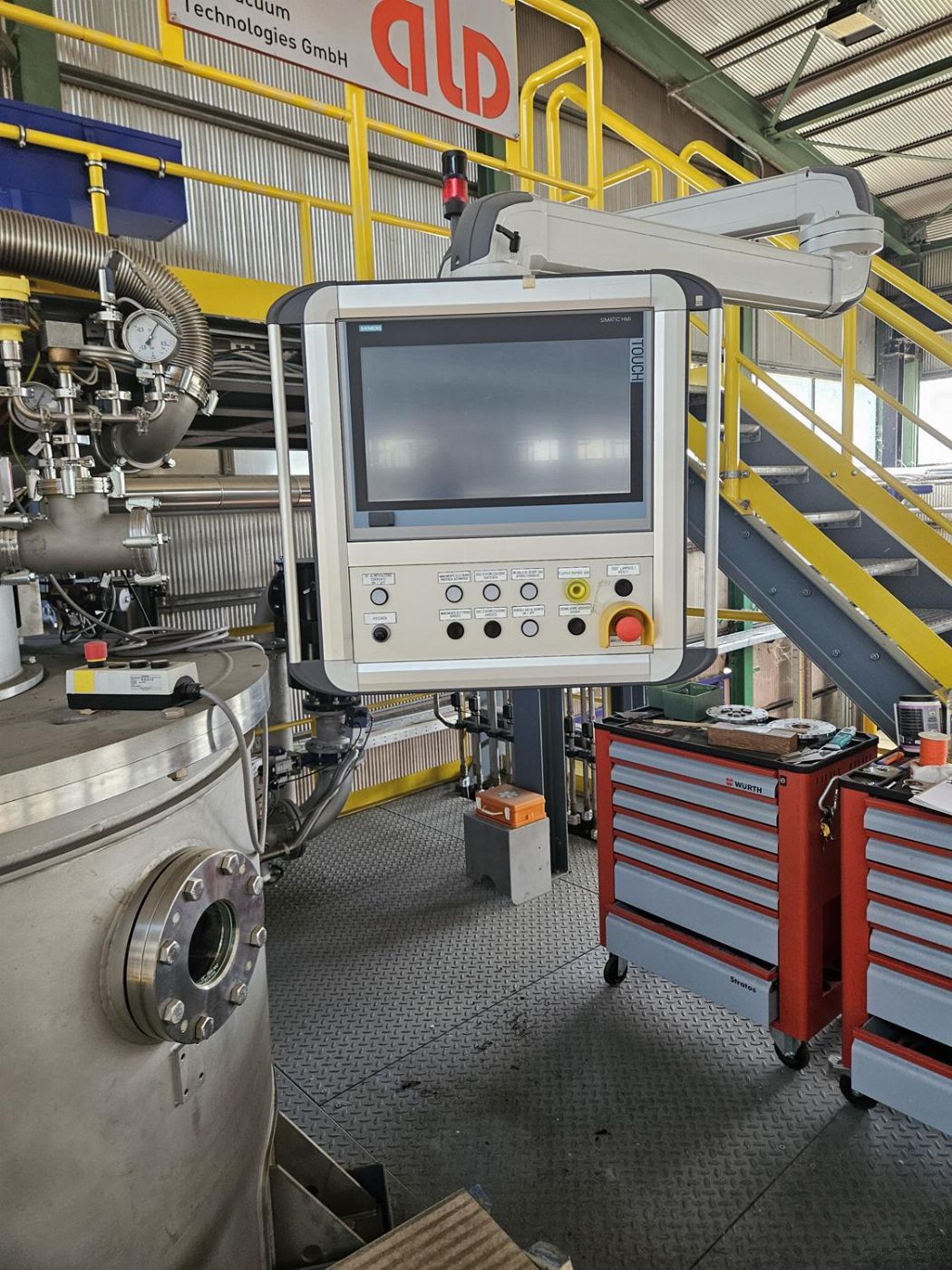

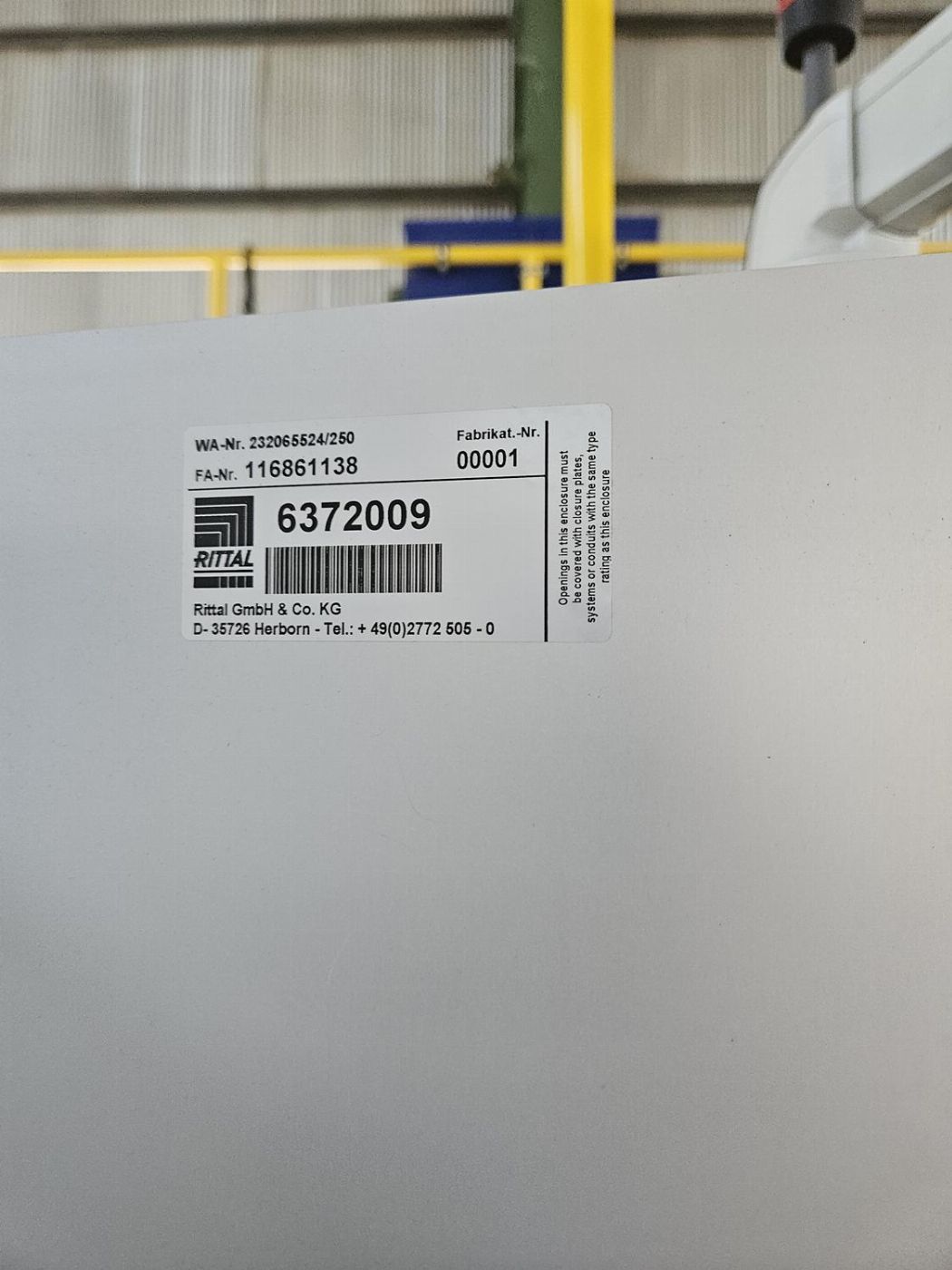

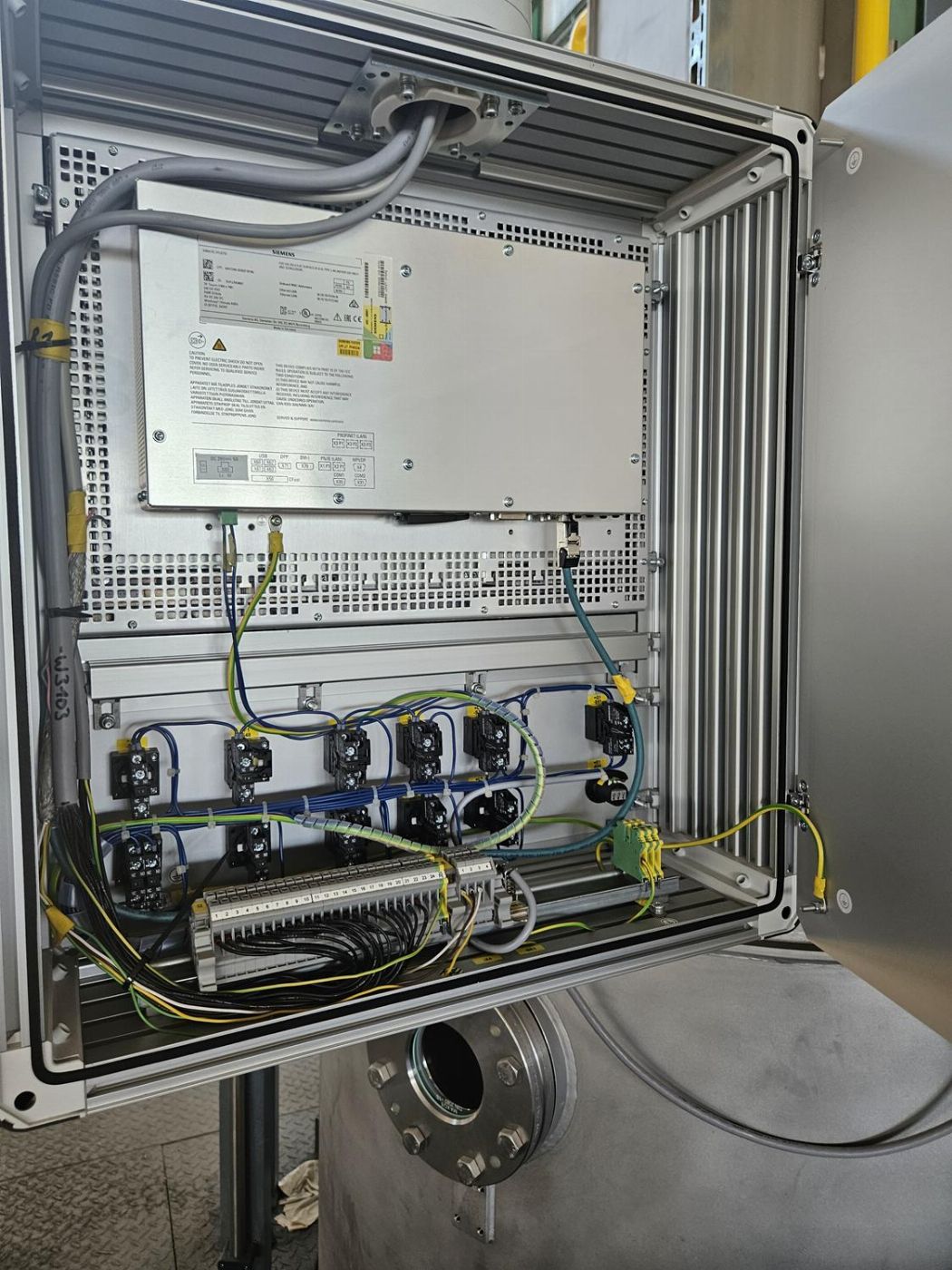

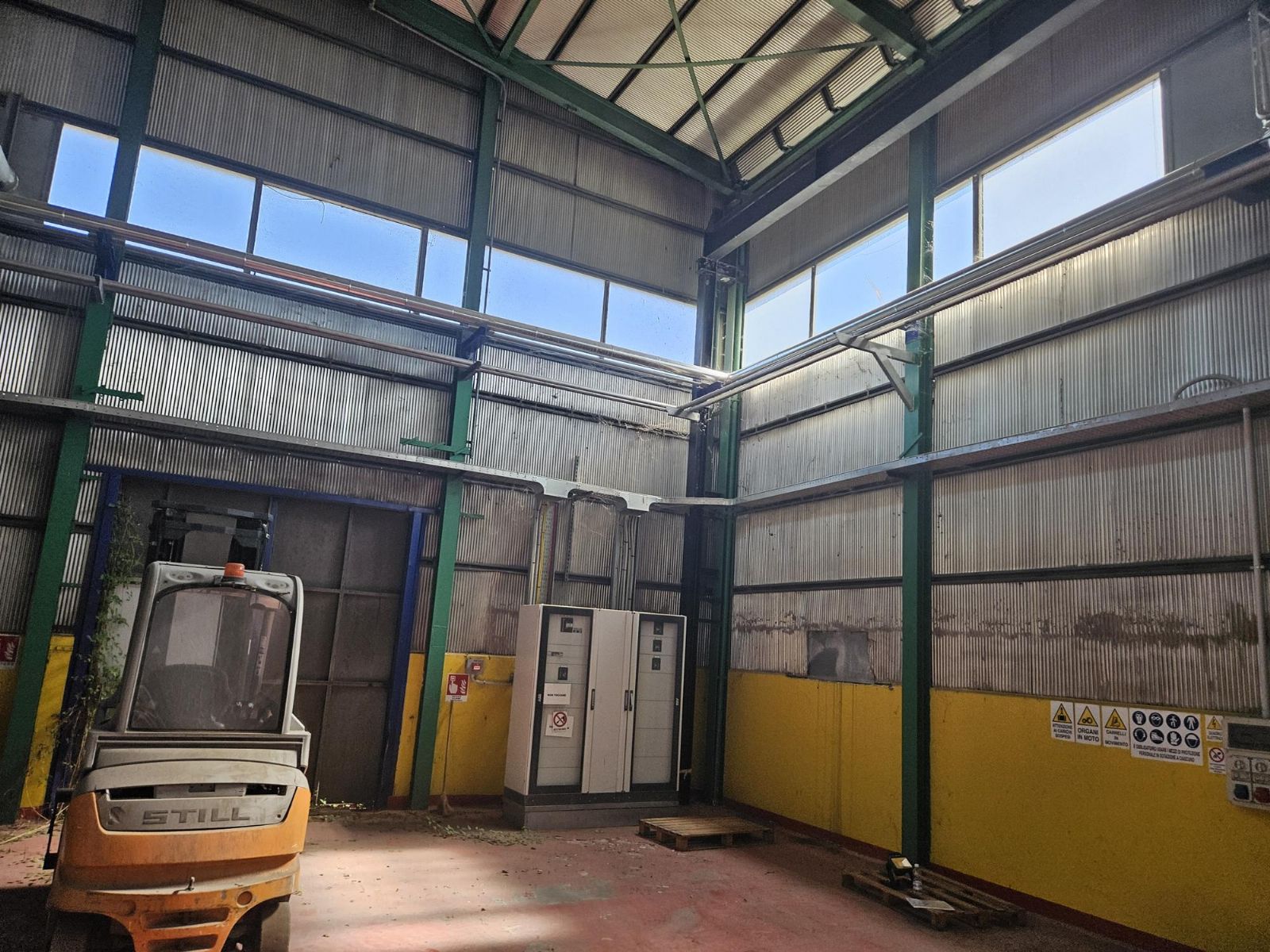

1 ALD general power and control electrical cabinet (+E1) with adjustable Siemens SIMATIC HMI Touch Screen operator panel

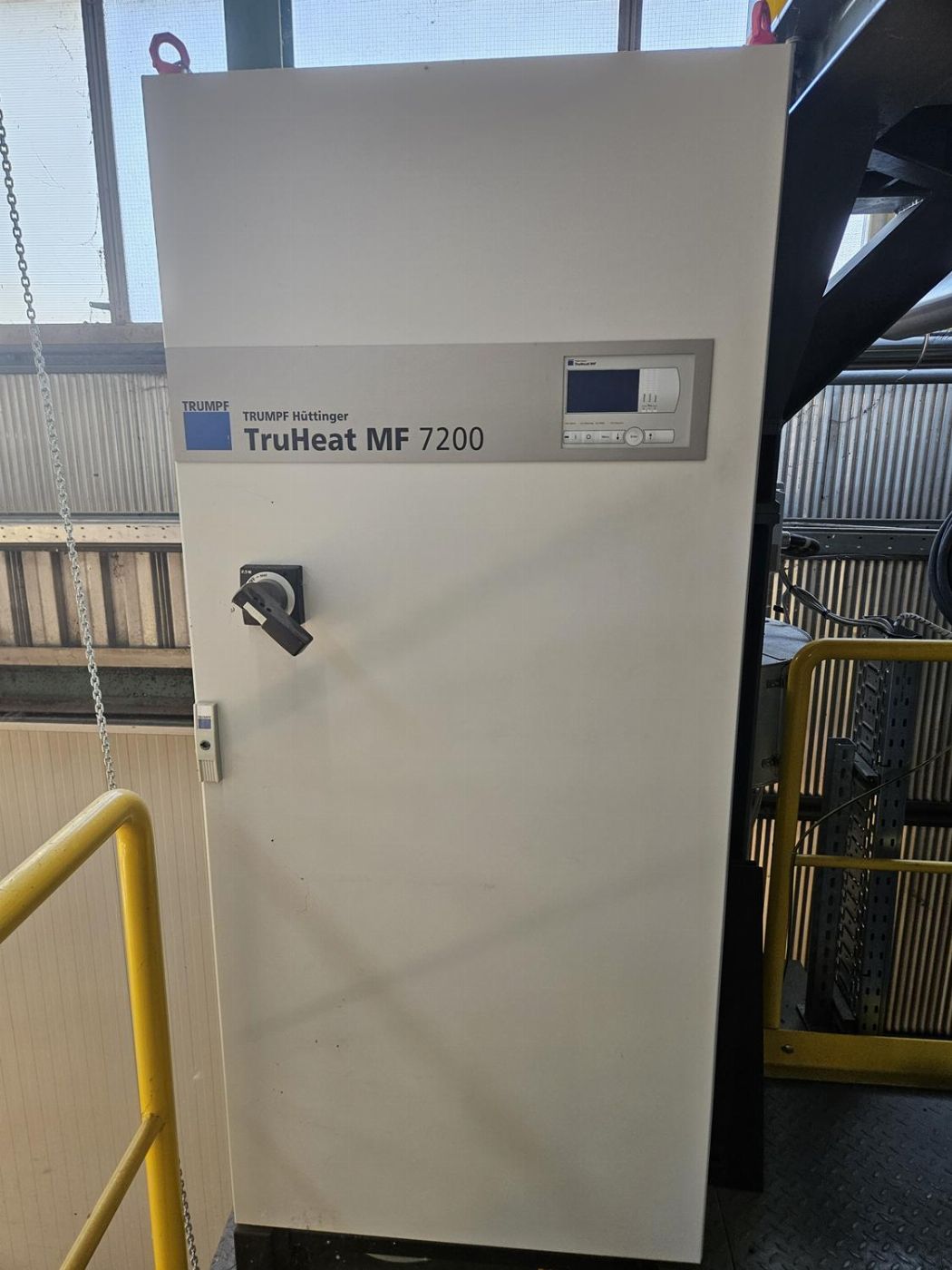

1 TRUMPF Hüttinger induction generator, model TruHeat MF 7200 (240 kVA)
1 TRUMPF tuning module, model TruHeat MF AK 72 x 330 nF (year 2016)
1 OhmEx GmbH gas flow electric heater, 117 kW (year 2017)

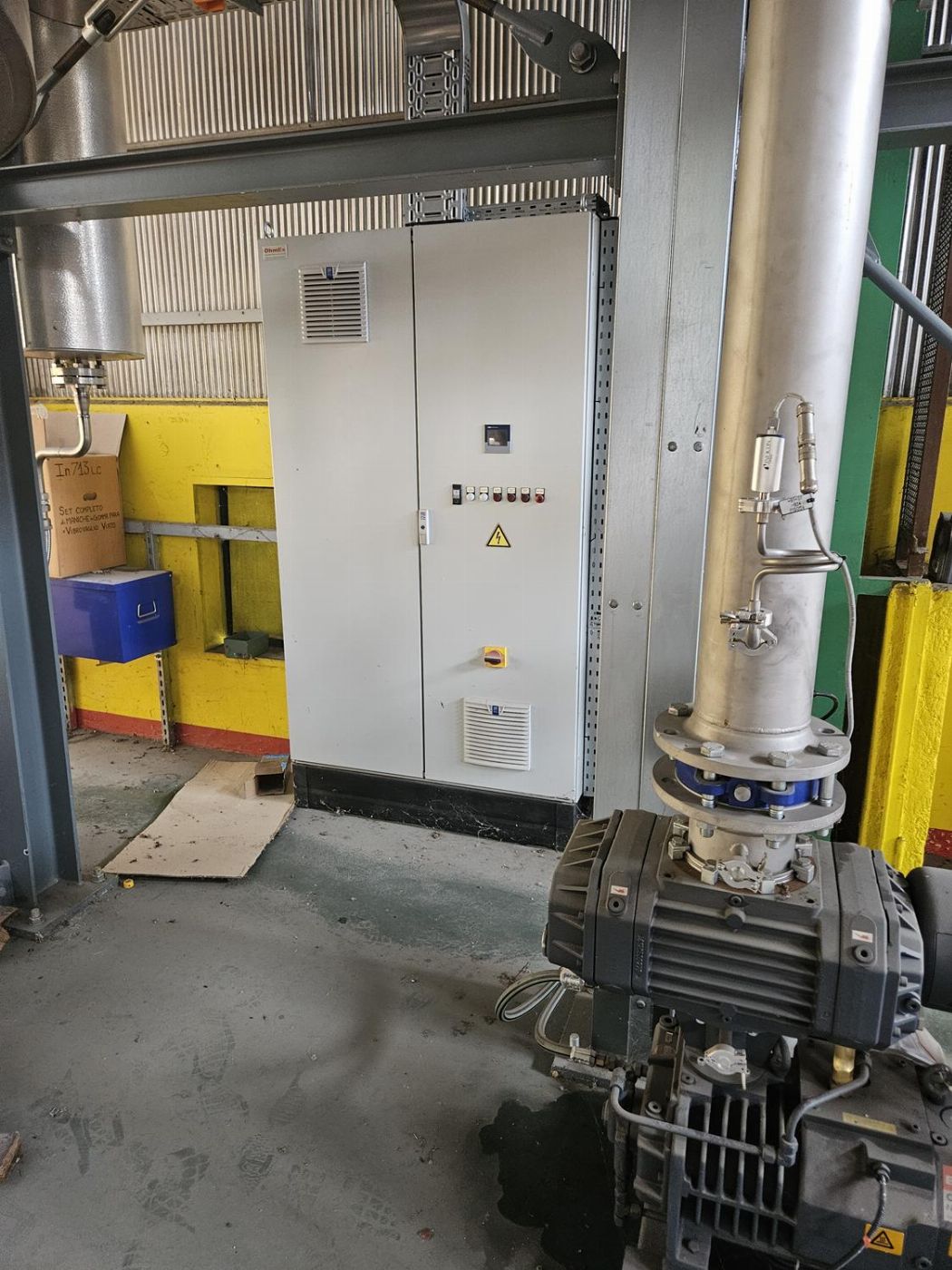

1 Busch industrial vacuum pump unit consisting of a COBRA NC 0200 B dry primary pump and a WP 1000 D 2Z1 Roots booster (year 2017)

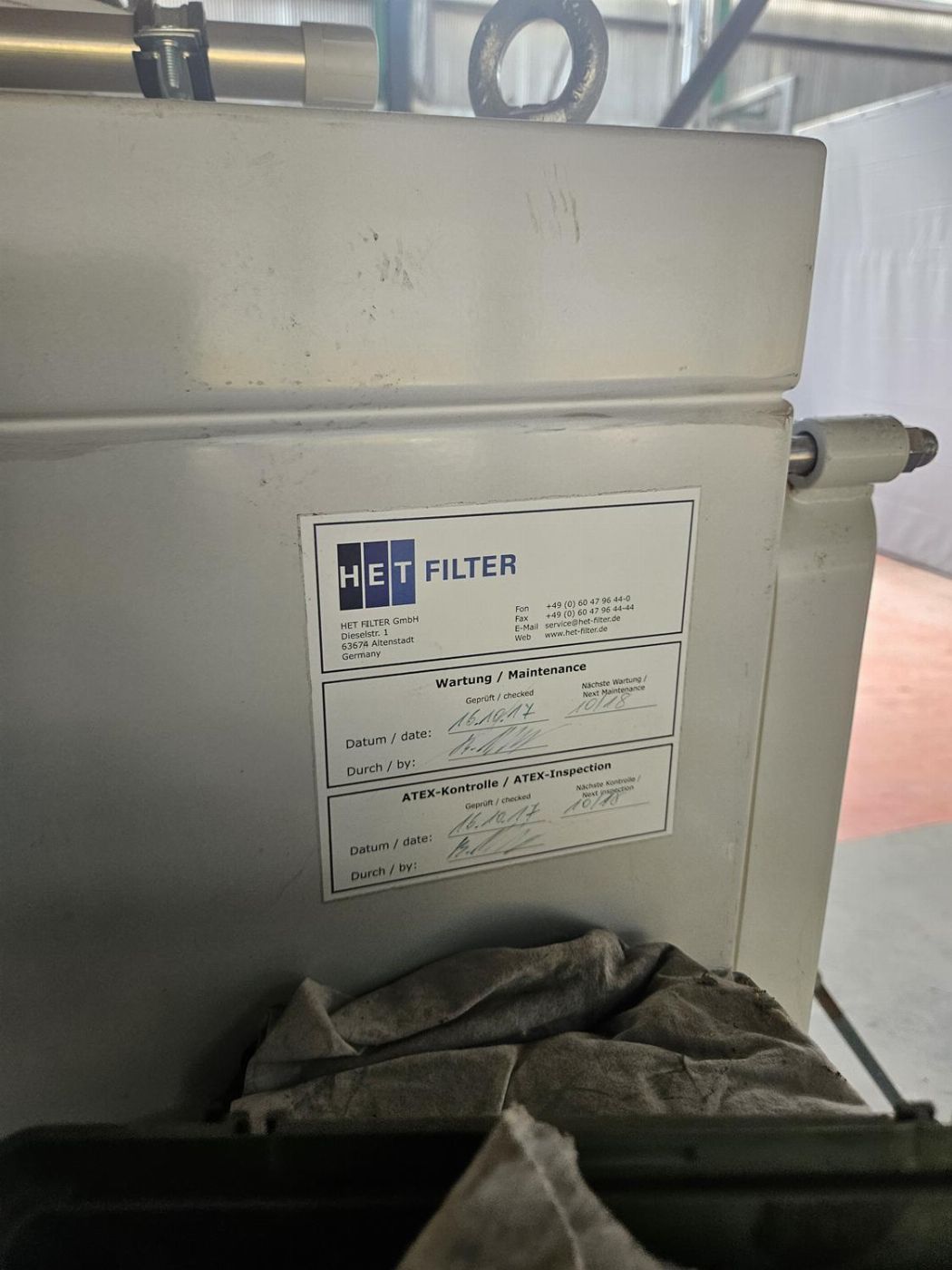

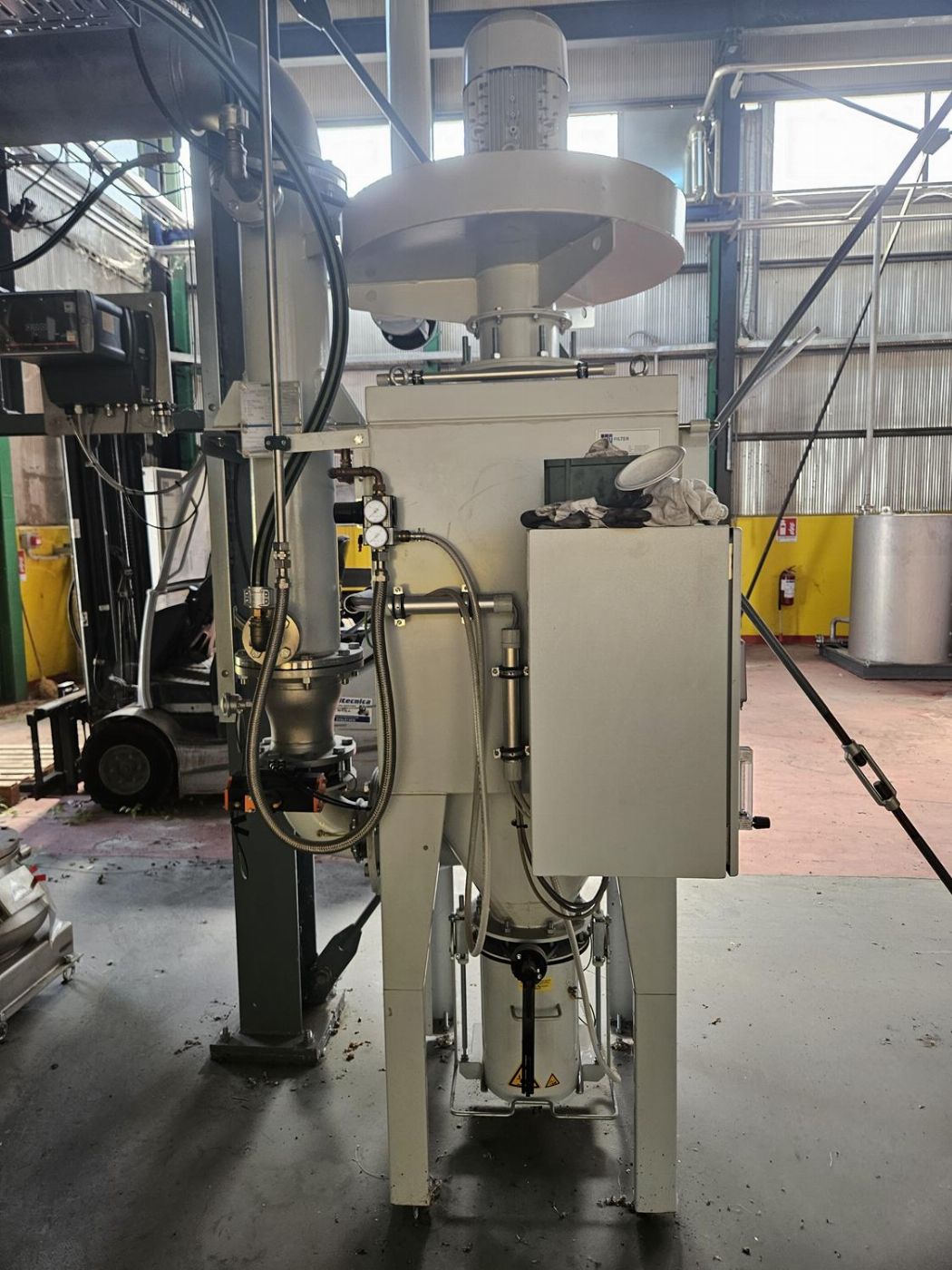

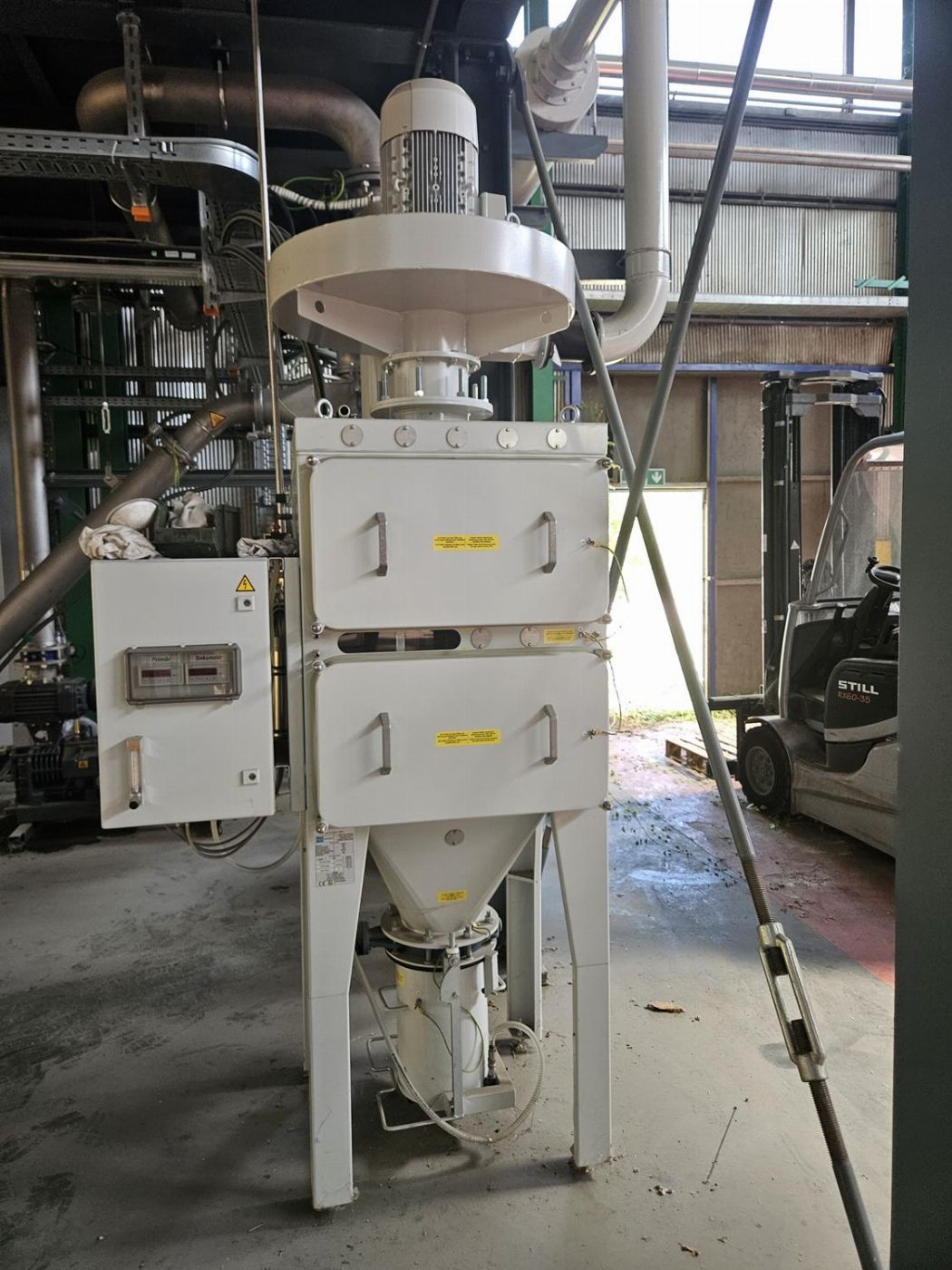

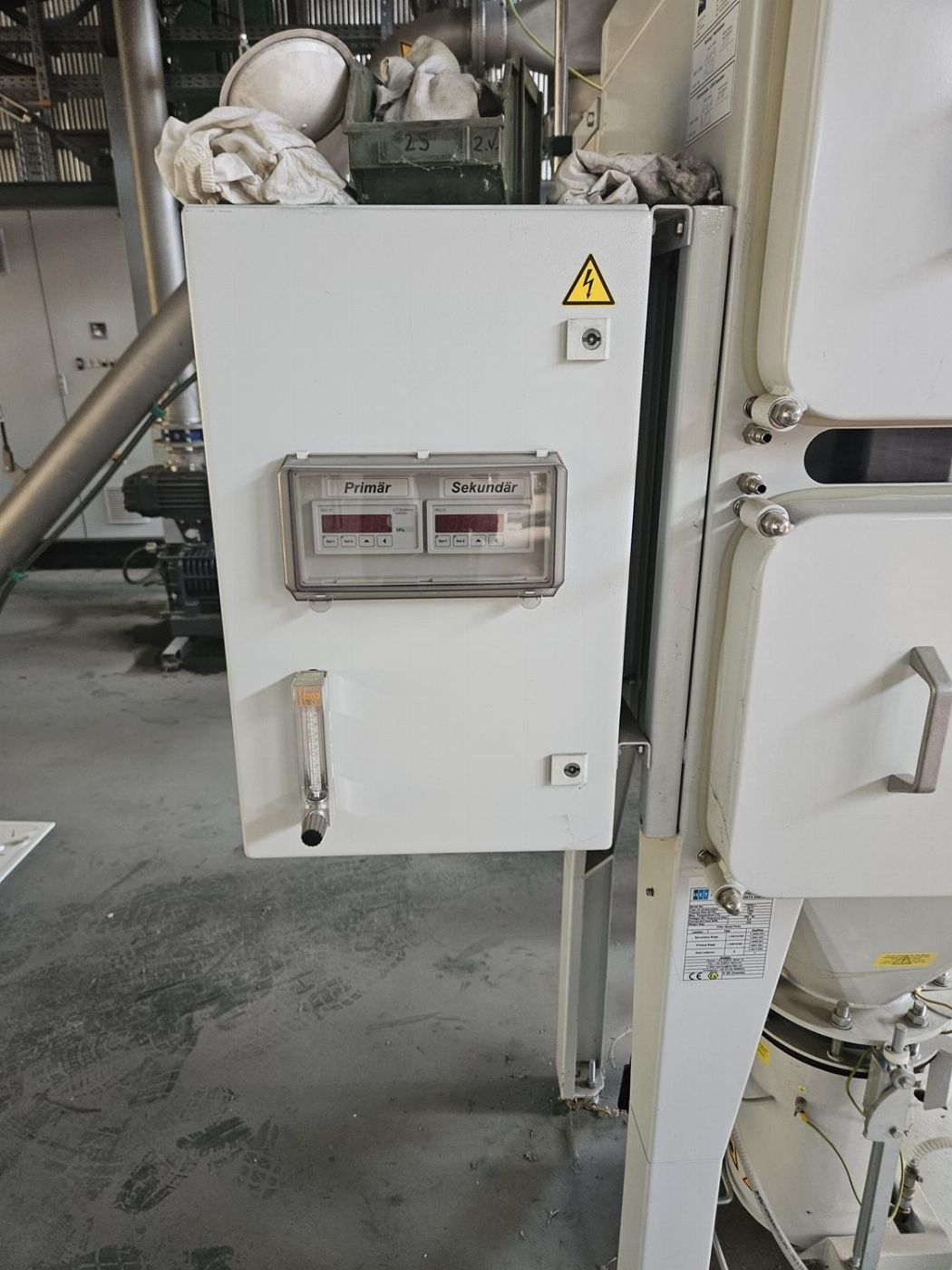

1 HET Filter GmbH ATEX fine dust filtration system, model A-1UED1-1-WB-C (1,500 m³/h, year 2017)

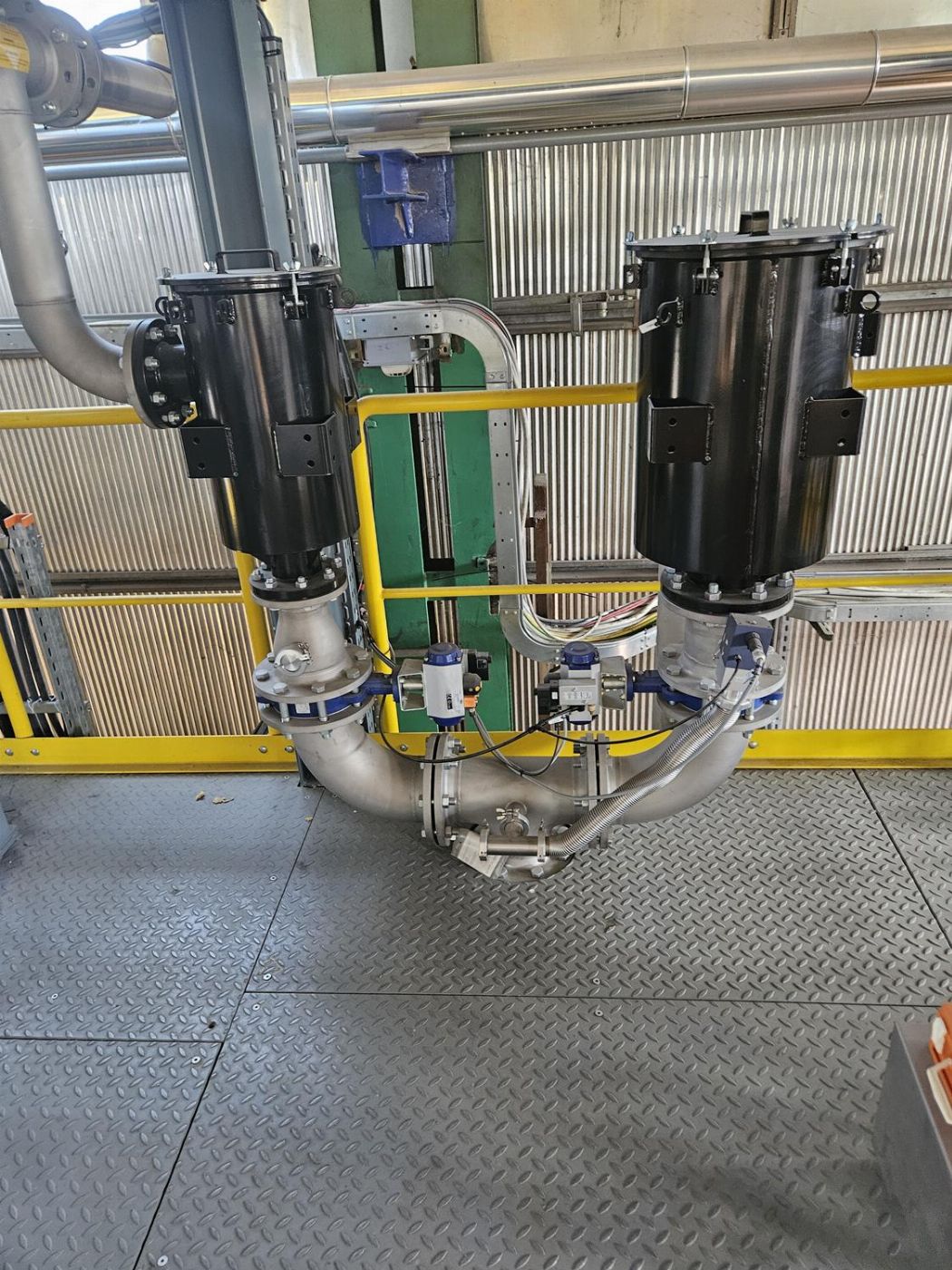

2 Solberg International Ltd. vacuum protection filters, model CSL0001117 (with pneumatic butterfly valves)

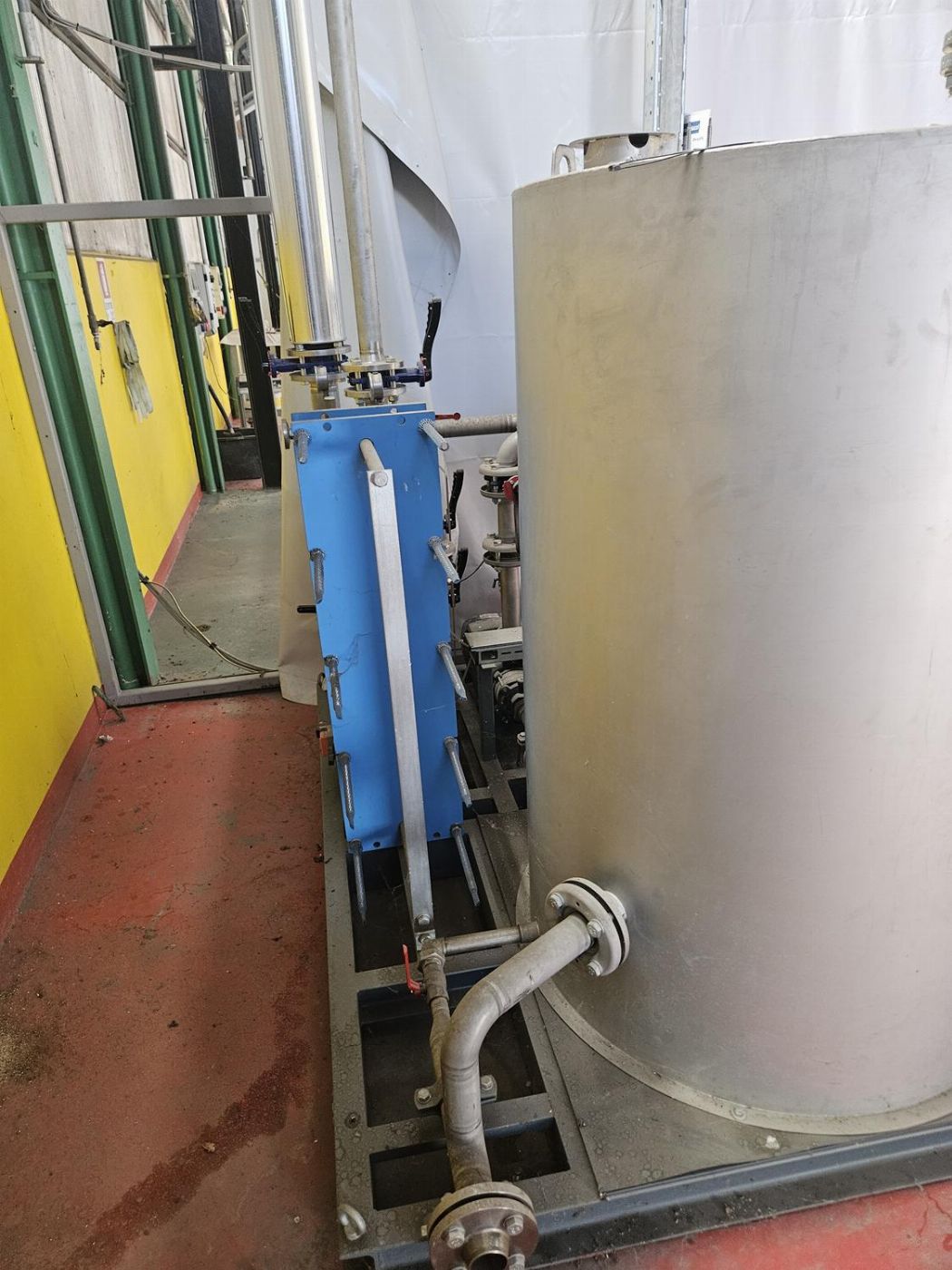

1 FUNKE Wärmeaustauscher heat exchanger, model C200 804-1WEG (year 2017)
1 AMS Analysensysteme continuous gas analyzer, model AMS 5000 / AMS 5200

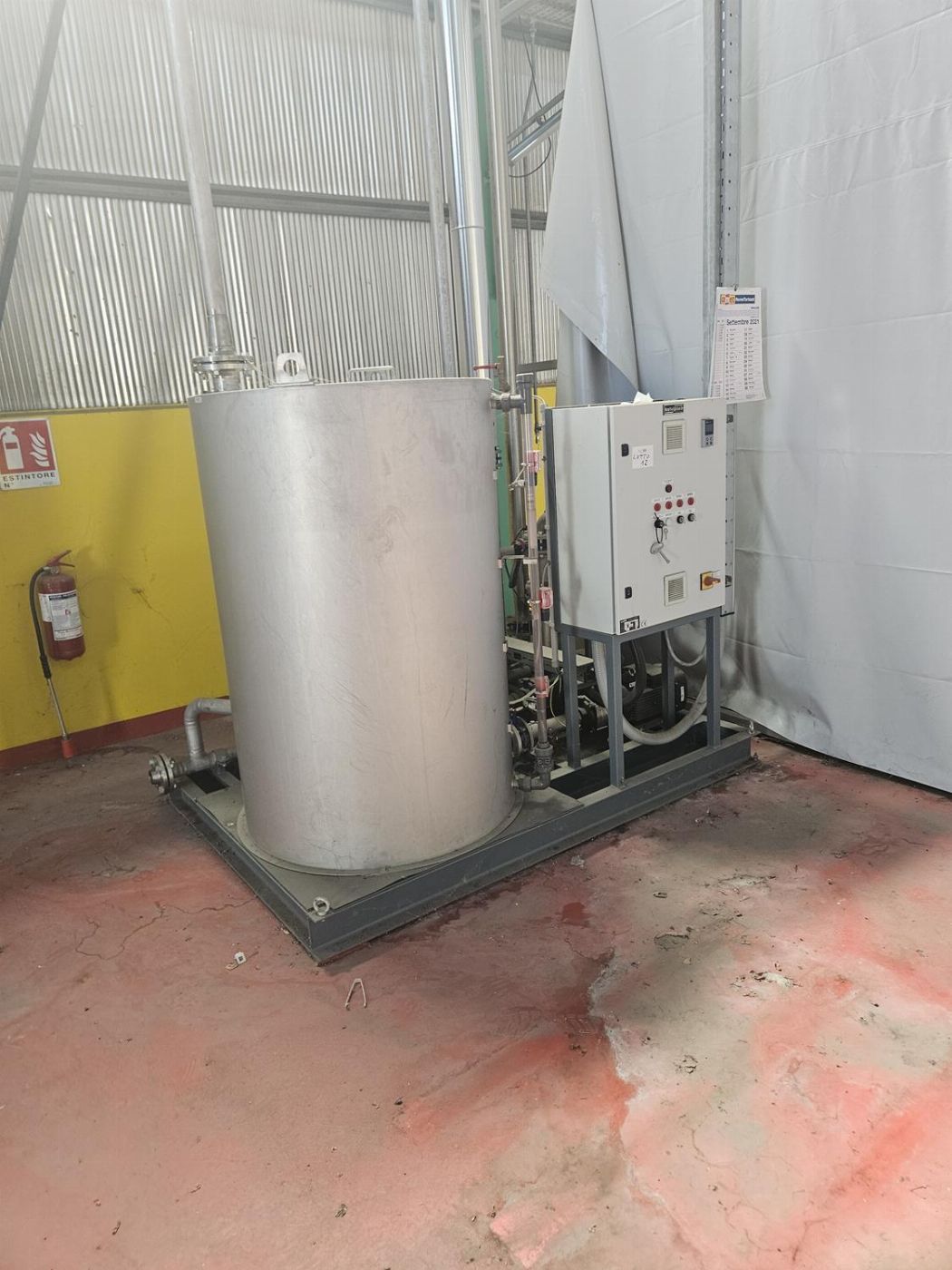

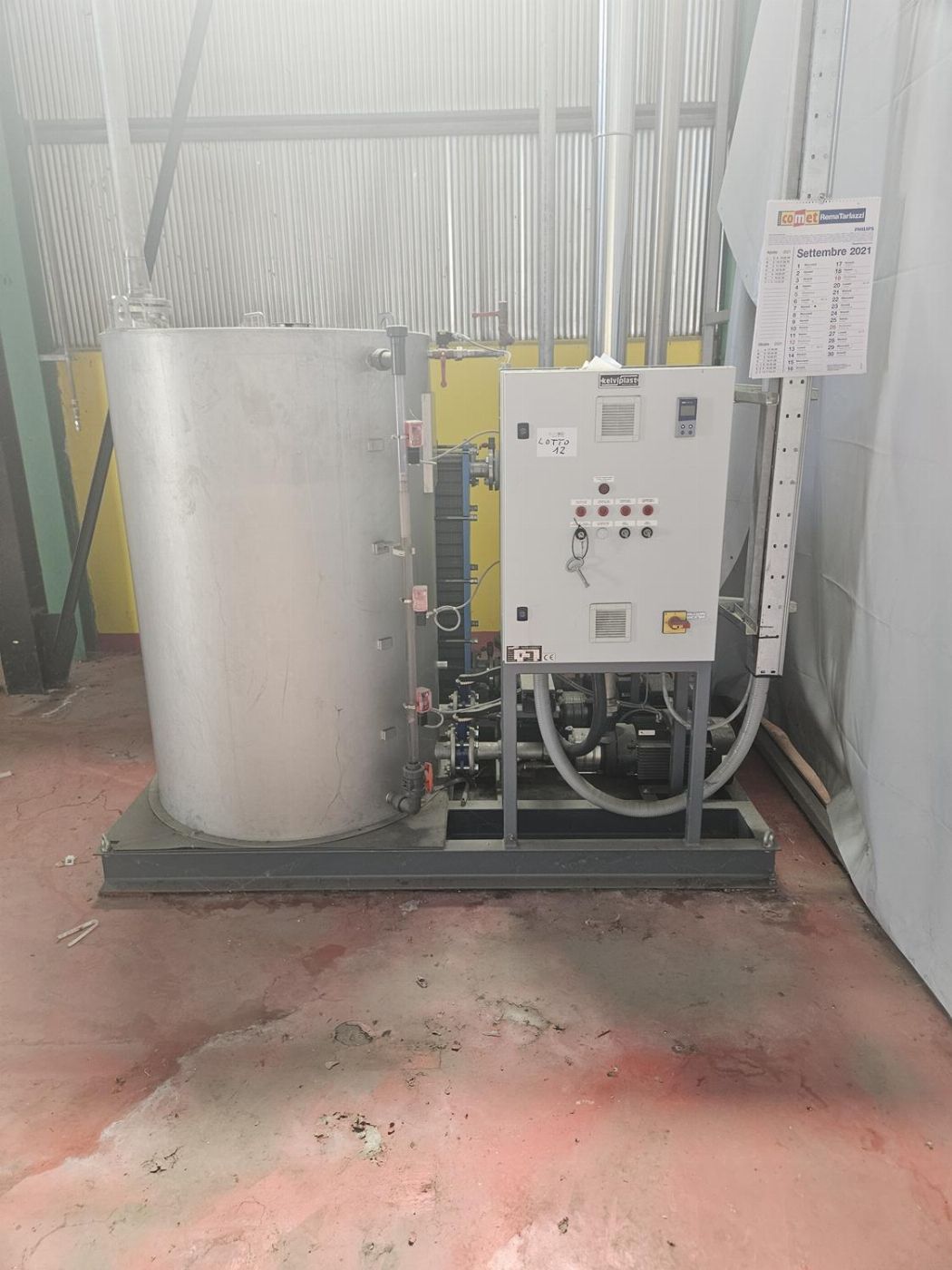

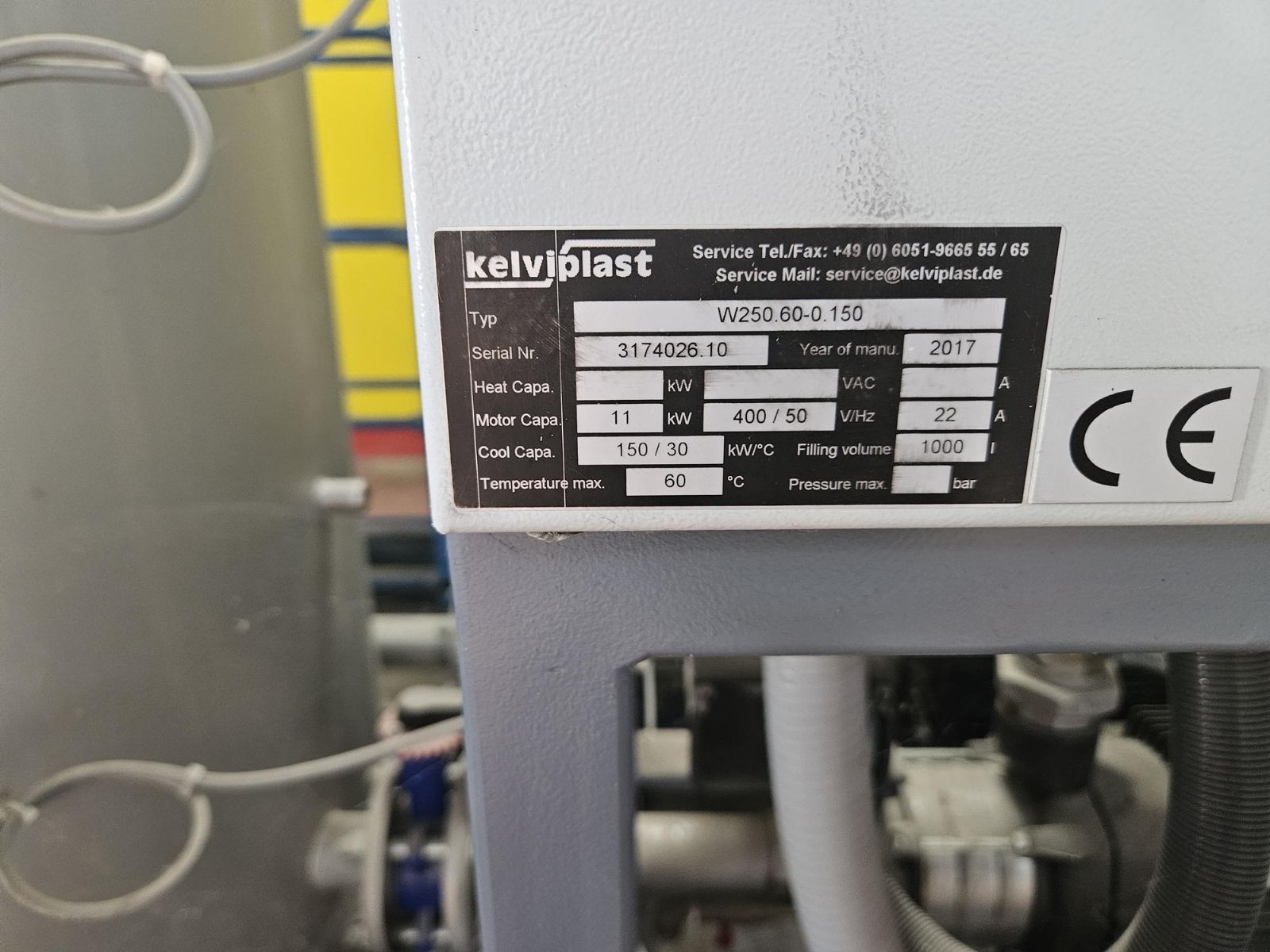

1 Kelviplast GmbH temperature control system and chiller, model W250.60-0.150, with a 1,000-litre stainless steel tank and 11 kW pump (year 2017)

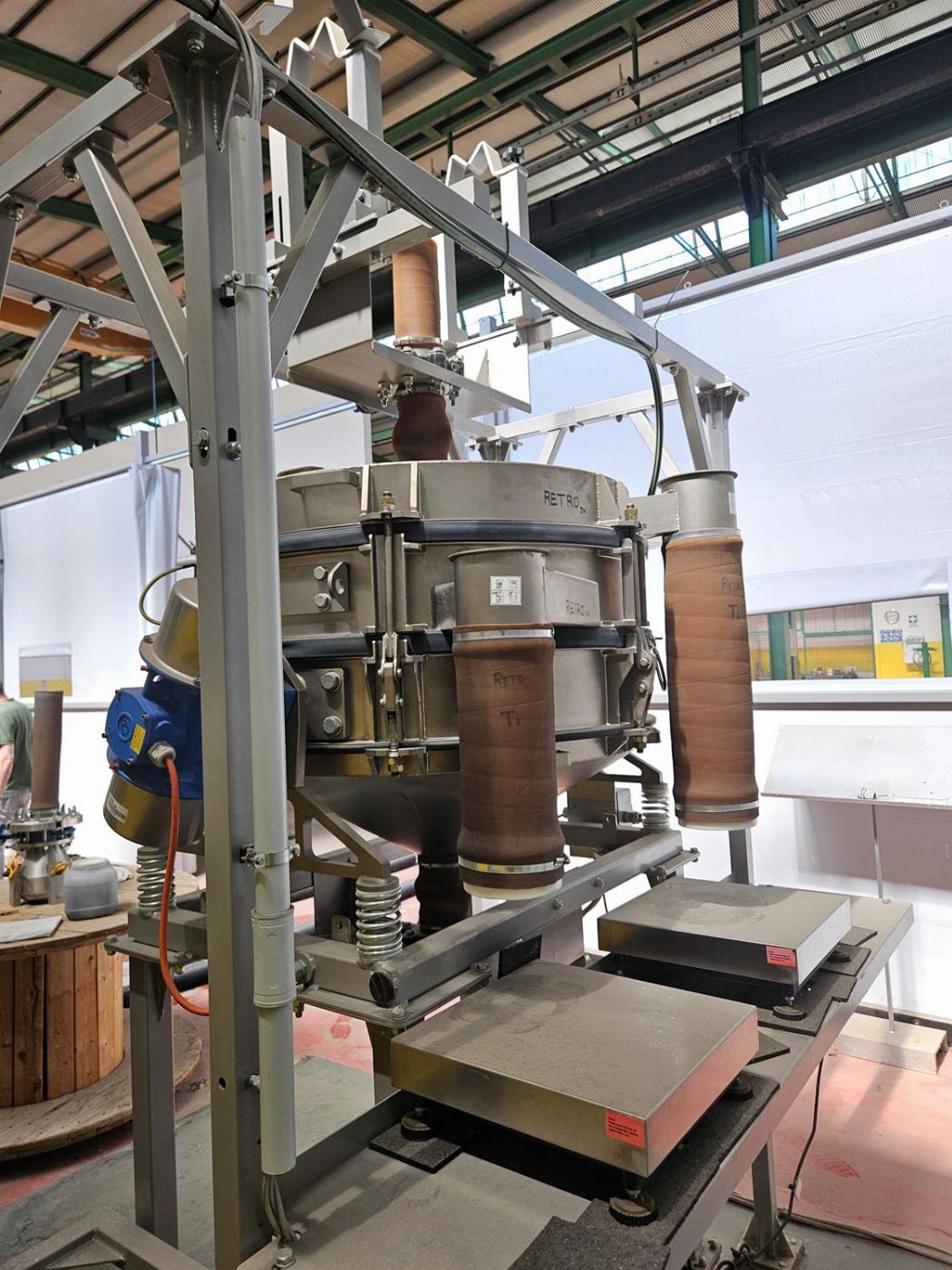

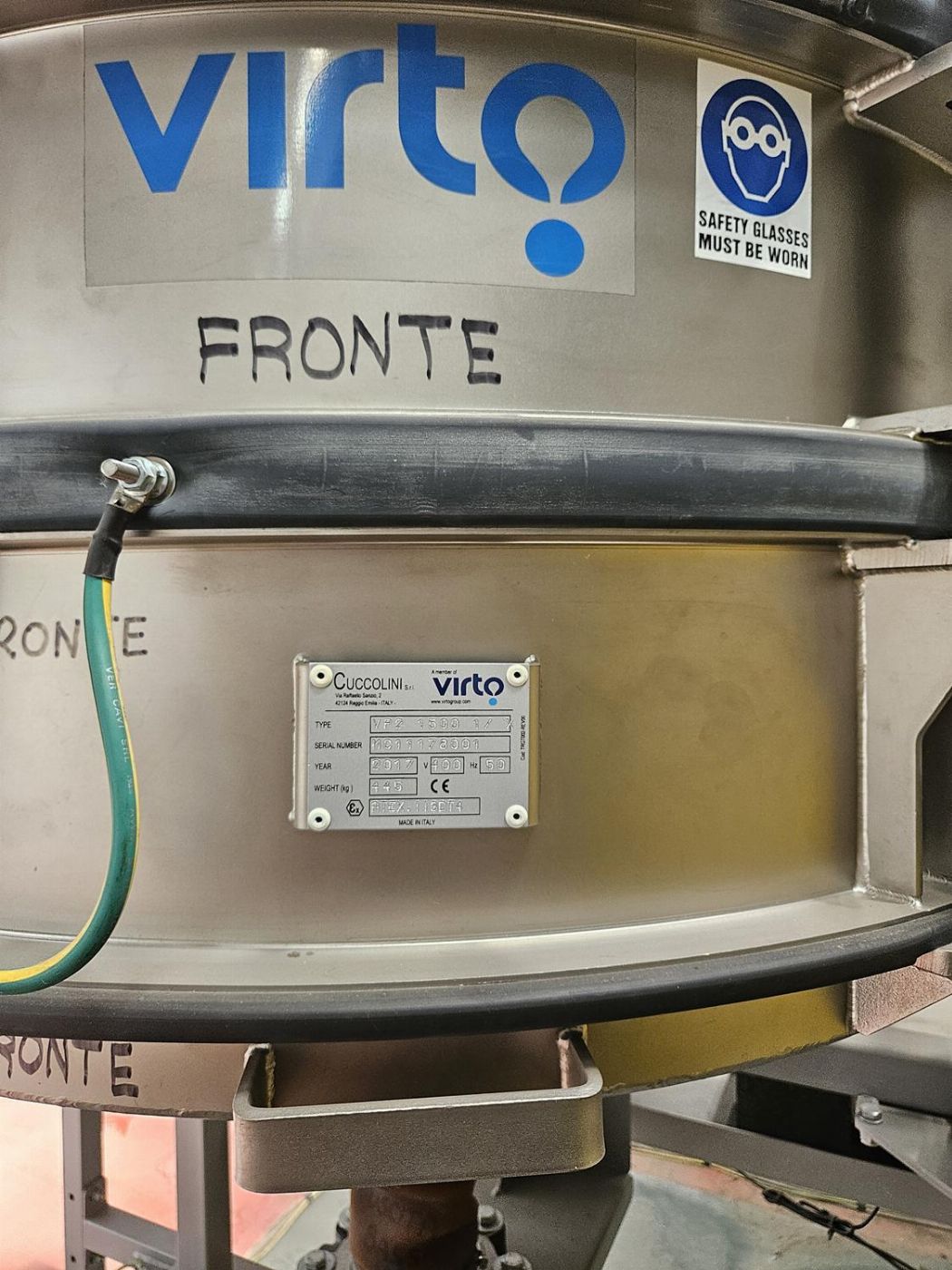

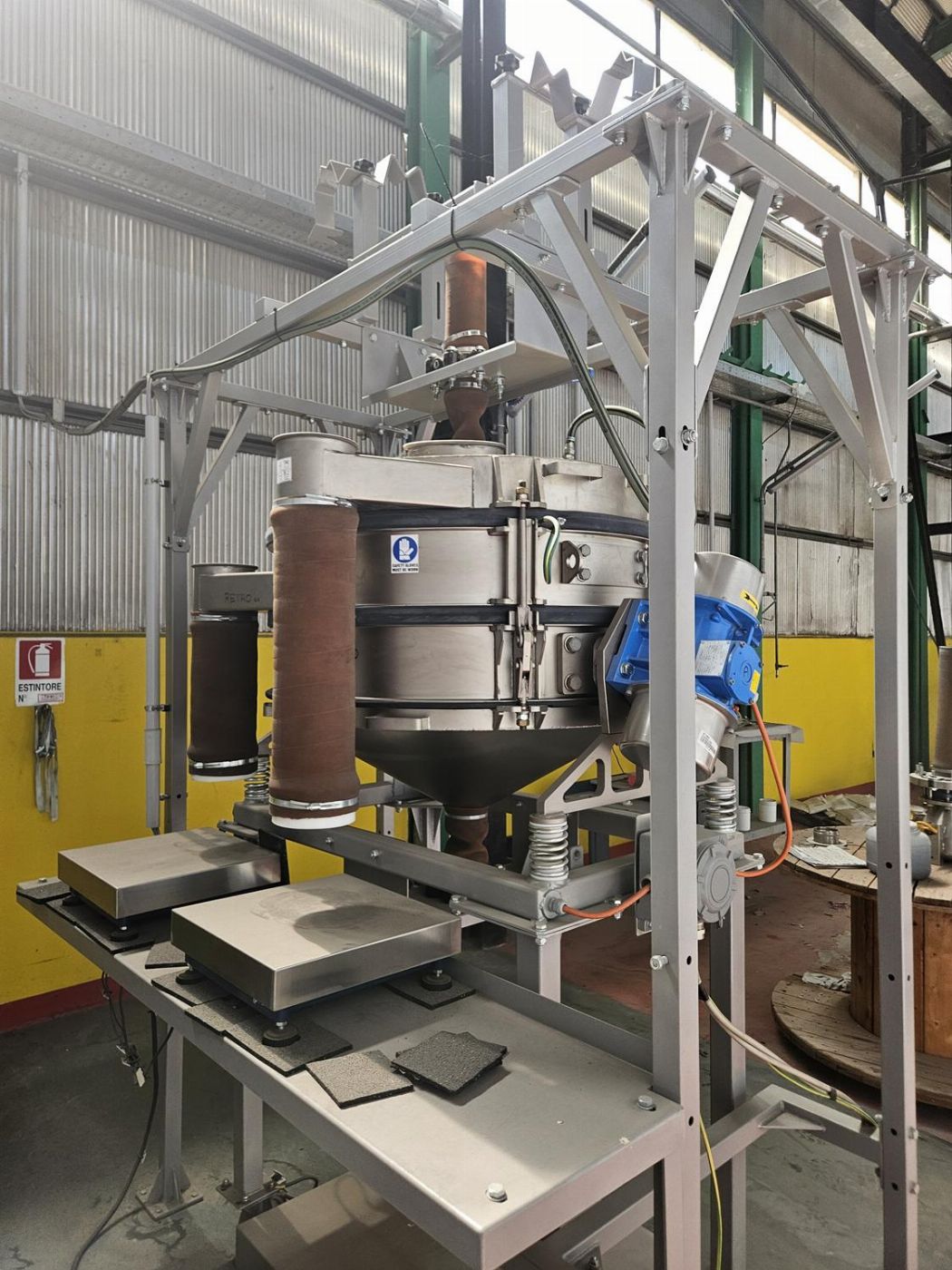

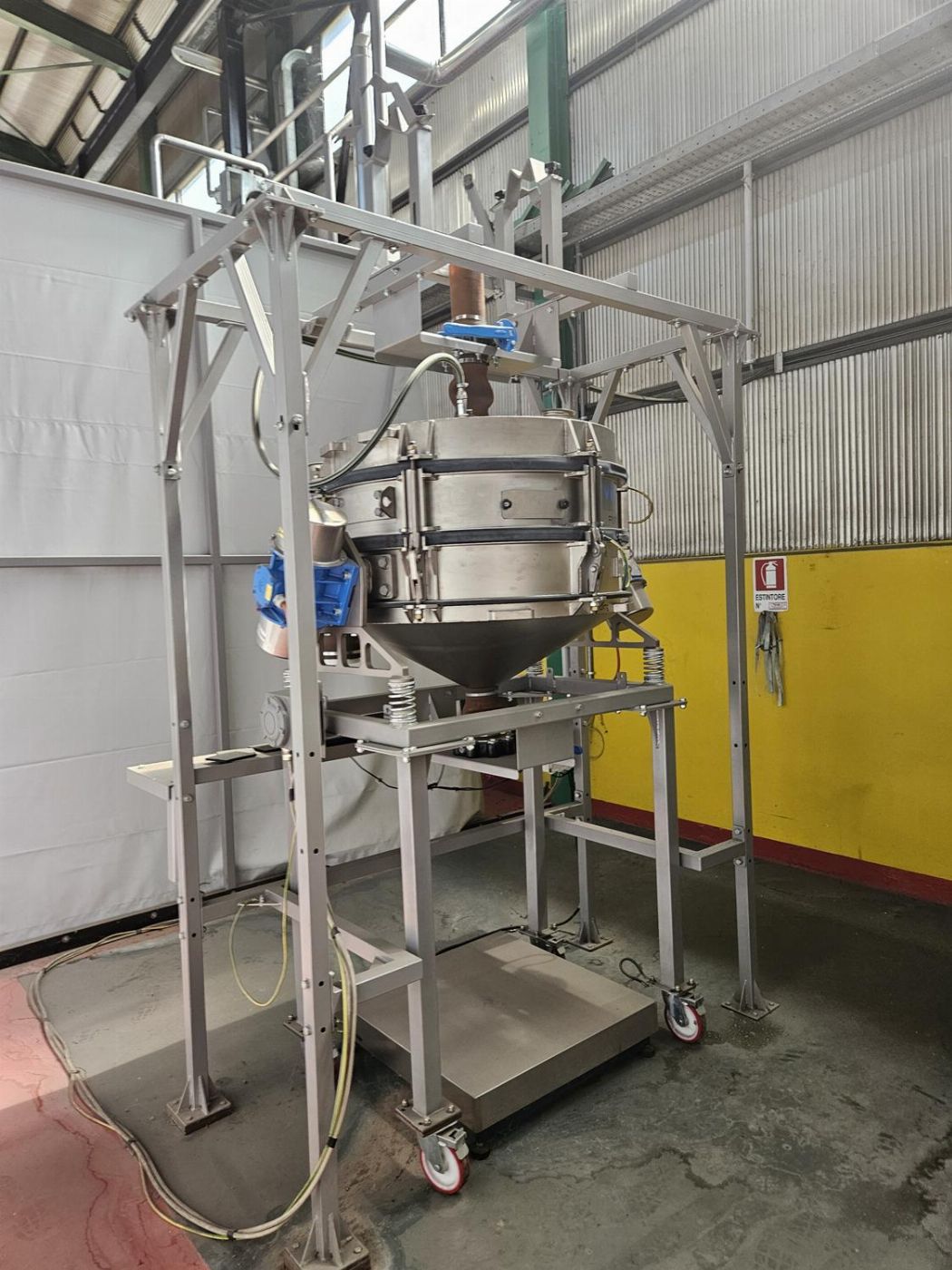

1 Cuccolini S.r.l. (Virto Group) ATEX vibrating screen / particle-size sieve, model VP2 1500 1/X (year 2017), complete with wheeled support frame and electronic weighing platform

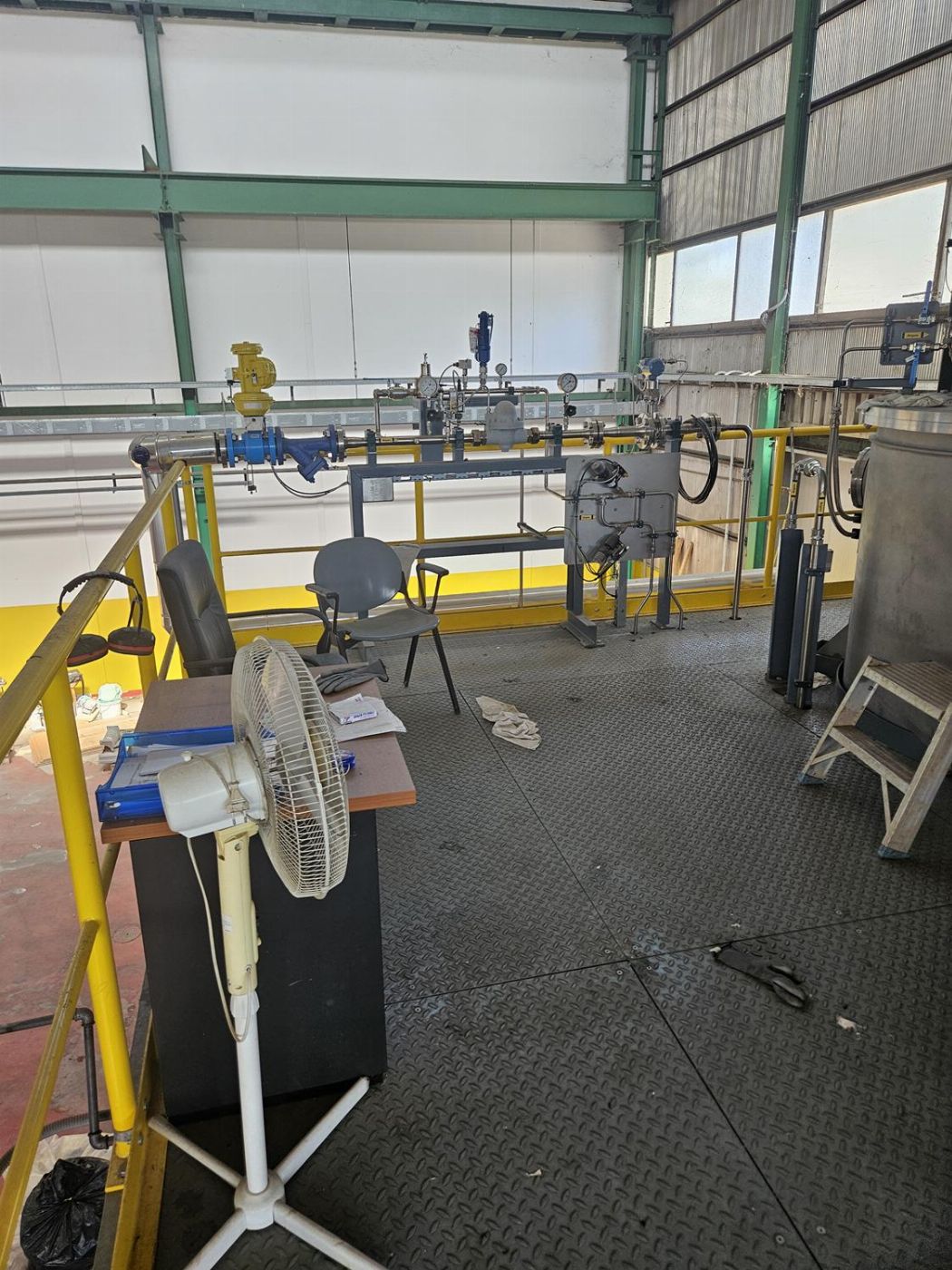

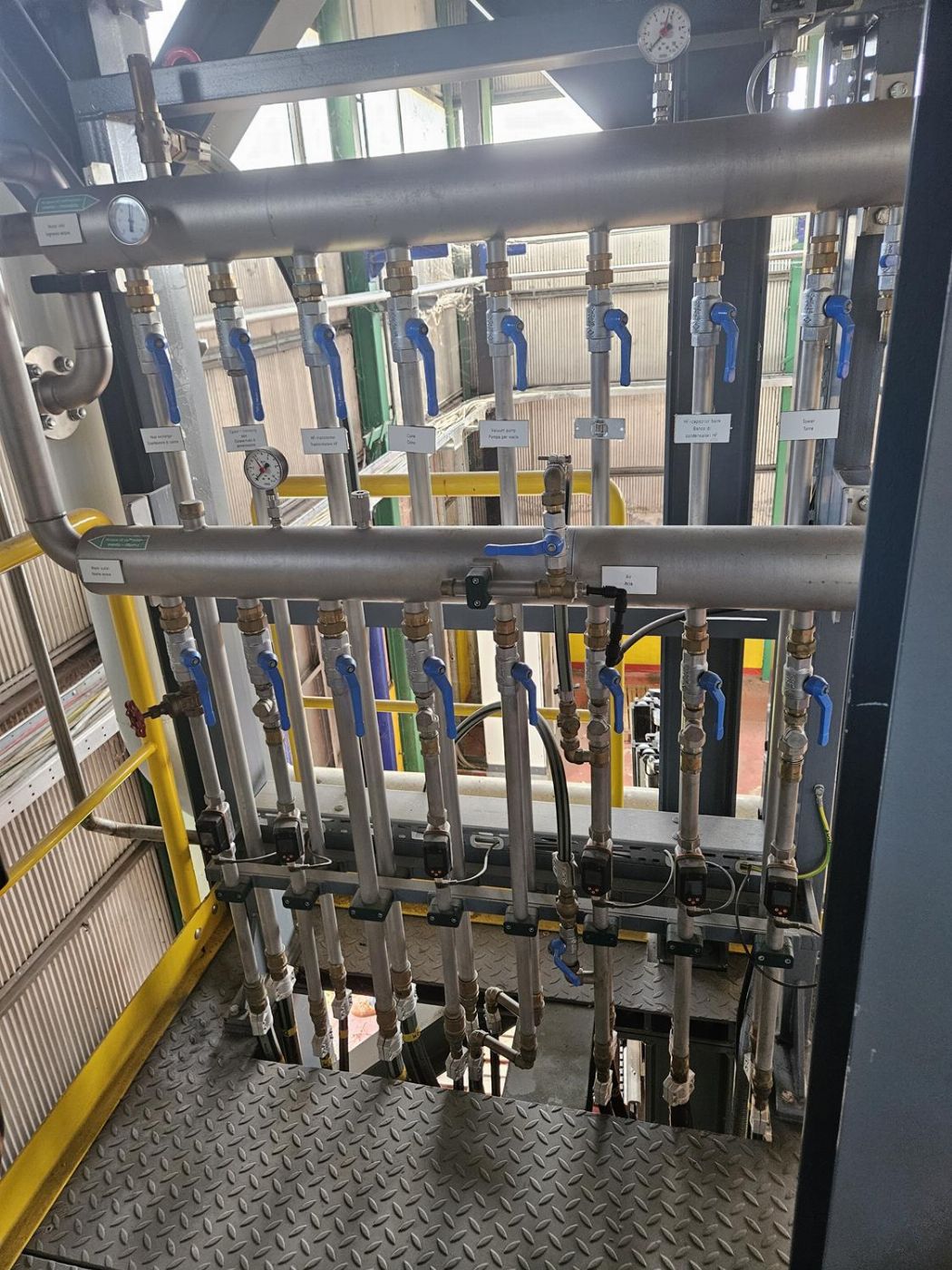

1 inert gas distribution system (argon manifold), complete with ramps, valves and flow switches
1 jib crane with electric hoist for lifting charges/electrodes

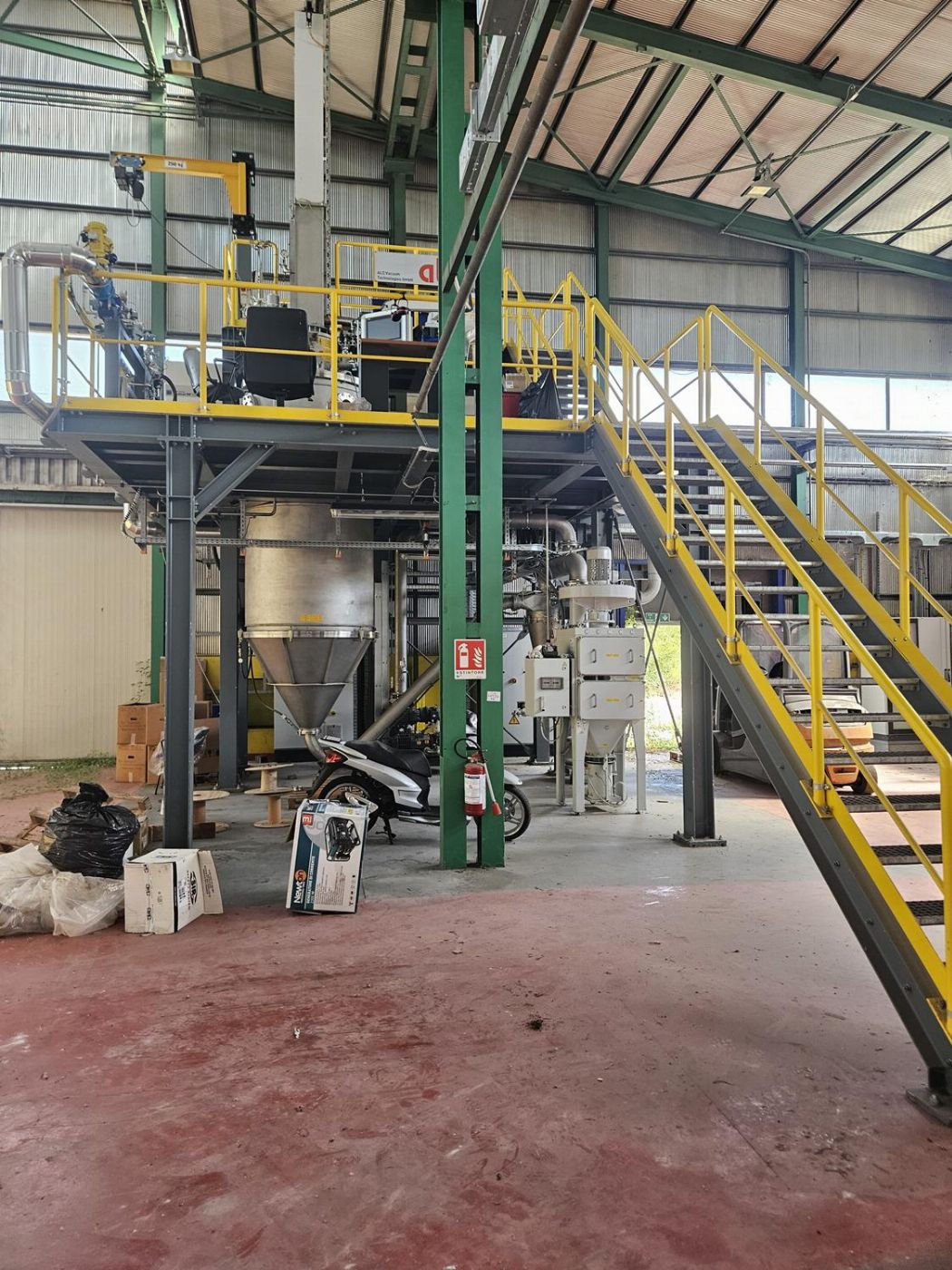

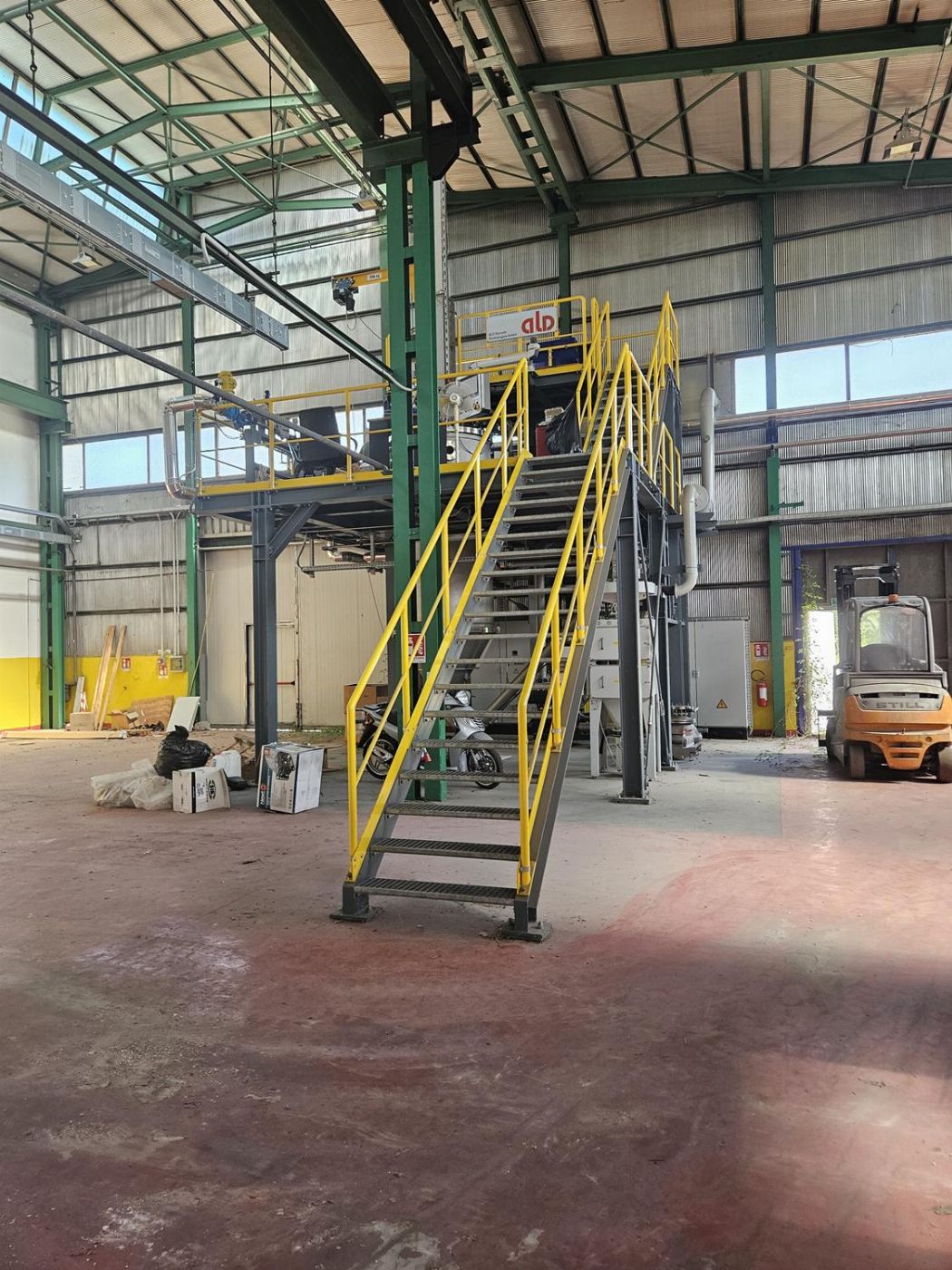

1 load-bearing two-level metal mezzanine structure with access stairs and safety walkways

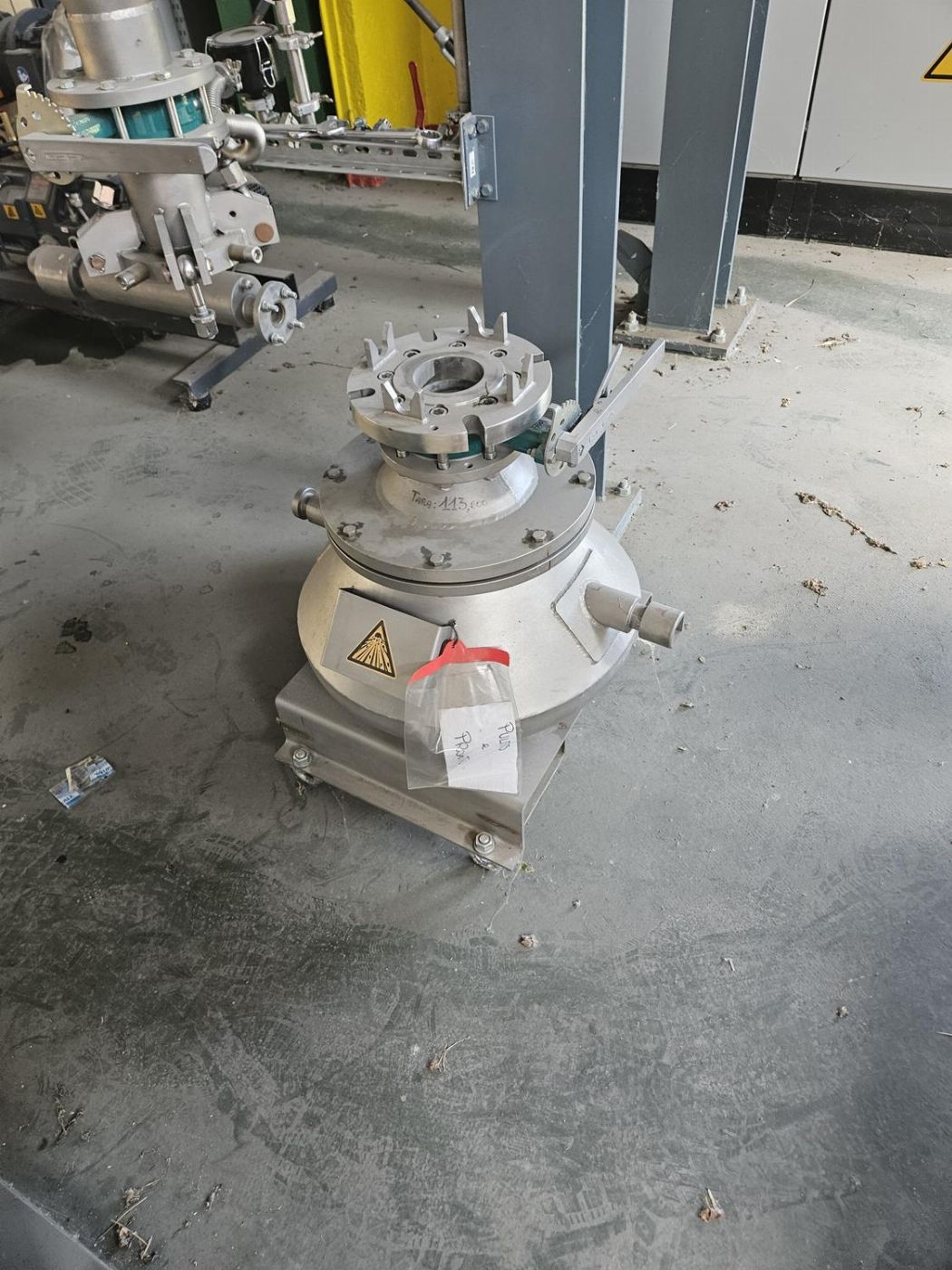

Various accessories, pneumatic/manual shut-off valves, mobile transfer hoppers and stainless steel connecting pipes.

Ref. No. - 12
